Aozhong Red Non-Woven Abrasive Hand Pads For Metal Finishing

No.NW-AO-RD-VFN-150230
Red Non-Woven Abrasive Hand Pad for metal graining, rust removal, oxide cleaning, scuffing, blending, and coating preparation. AoZhong supports size, grade, thickness, density, printing, packaging, and converted formats.
Product Name
Thin Non-Woven Scouring Pad
Material
Nylon Fiber + Abrasive Grain + Resin Bond
Abrasive Type
Aluminum Oxide / Silicon Carbide
Thickness
3mm – 10mm
Size
120mm*20mm*10mm 150mm*230mm*1.5mm
Custom Size
Supported
Shape
Sheet / Roll / Disc / Custom Die-Cut
Wet & Dry Use
Supported
OEM & ODM Service
Supported
Packaging
Customization
  • Aozhong Red Non-Woven Abrasive Hand Pads For Metal Finishing,Aozhong Red Non-Woven Abrasive Hand Pads For Metal Finishing
  • Aozhong Red Non-Woven Abrasive Hand Pads For Metal Finishing,Aozhong Red Non-Woven Abrasive Hand Pads For Metal Finishing
  • Aozhong Red Non-Woven Abrasive Hand Pads For Metal Finishing,Aozhong Red Non-Woven Abrasive Hand Pads For Metal Finishing

Description

Red Non-Woven Abrasive Hand Pad

The Red Non-Woven Abrasive Hand Pad is designed for metal finishing, grain blending, rust removal, oxide removal, cleaning, scuffing, and coating preparation.

The pad uses a three-dimensional fiber web containing abrasive grain bonded with resin. Its open structure conforms to flat surfaces, tubes, profiles, edges, grooves, and contours. The pad can be used by hand, with a hand block, or converted into strips, discs, rolls, and die-cut shapes.

AoZhong manufactures non-woven abrasive products for distributors, converters, metalworking plants, maintenance suppliers, and volume buyers. Size, thickness, density, abrasive grade, printing, conversion, and packaging can be specified for each order.

Product Features

Flexible non-woven abrasive material for manual surface preparation, cleaning, blending and converted abrasive products.

01
Non-Woven Fiber Web

Designed for hand sanding and surface preparation.

02
Distributed Abrasive Grain

Abrasive grain is distributed through the fiber structure.

03
Resin Bond

Supports abrasive-grain retention during use.

04
Open-Web Construction

Provides internal space for swarf and sanding residue.

05
Red Identification Color

Red color supports product and grade identification.

06

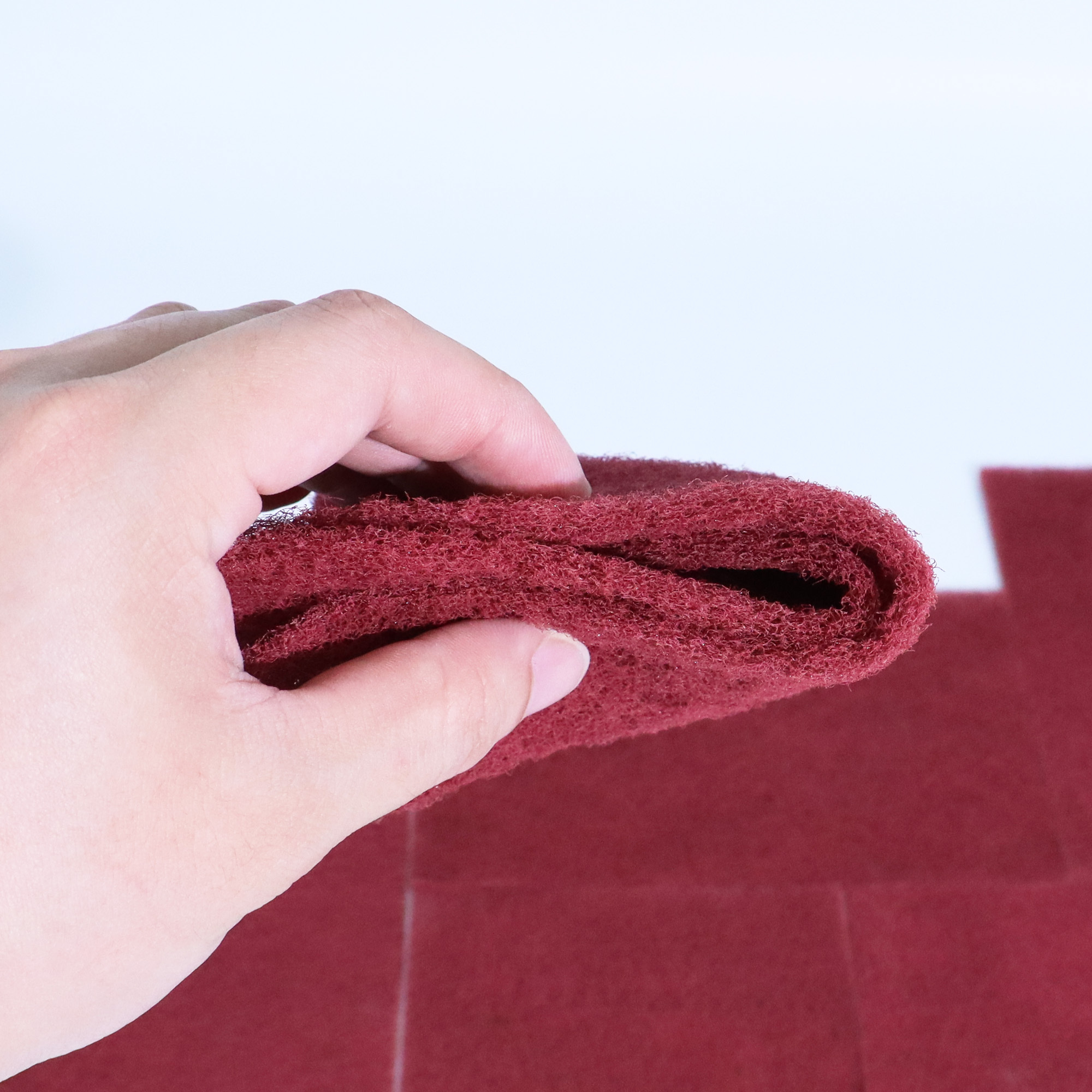

Flexible and Foldable

Follows profiles, tubes, edges, corners and contoured parts.

NON-WOVEN RED PAD SURFACE CONDITIONING
FLEXIBLE WEB Hand Pad & Conversion Material
07
Two-Sided Use

The standard hand-pad format provides two working faces.

08
Metal Grain Blending

Supports grain blending and brushed-finish preparation.

09
Cleaning Action

Removes surface rust, oxide, dirt and coating residue.

10
Surface Scuffing

Prepares surfaces before primer, paint, coating or bonding.

11
Cut-to-Size Supply

Suitable for workshop and production-line requirements.

12
Multiple Formats

Convertible into sheets, strips, discs, rolls and shapes.

Material and Structure

The Red Non-Woven Abrasive Hand Pad consists of an open synthetic fiber structure containing abrasive grain and resin bond.

01
PAD BODY

Synthetic Fiber Web

The fiber web forms the pad body. It provides compression, recovery, bending, folding, and contact with contoured surfaces.

Compression Recovery Conformability
02
CUTTING COMPONENT

Abrasive Grain

The abrasive grain performs the cutting action required for cleaning, scuffing, rust removal, and metal finishing. Aluminum oxide is a common configuration for metalworking hand pads, but the grain type must be confirmed in the product specification.

Cleaning Scuffing Metal Finishing
03
GRAIN RETENTION

Resin Bond

The resin attaches abrasive grain to the fiber intersections. Resin formulation and curing affect abrasive retention, shedding, wet strength, and cut-rate retention.

Bonding Wet Strength Cut Retention
04
DEBRIS PATHS

Open Voids

Space between the fibers collects rust, oxide, paint residue, metal swarf, and cleaning liquid during use.

Swarf Collection Residue Space Liquid Movement

Applications

Application coverage includes stainless-steel graining, rust and oxide removal, coating preparation, non-ferrous metal processing and workshop maintenance.

Application Area Typical Applications Process Guidance
01
Stainless Steel Graining Directional Finish Processing
  • Grain-line creation
  • Brushed-finish repair
  • Grain blending
  • Handrail finishing
  • Tube and profile finishing
  • Stainless steel panel preparation
  • Kitchen equipment surface processing
  • Enclosure and cabinet finishing
DIRECTIONAL FINISH

Move the pad in one direction and control pressure, stroke length, overlap, and replacement interval.

02
Rust and Oxide Removal Cleaning and Surface Preparation
  • Surface rust removal
  • Storage-rust cleaning
  • Oxide-film removal
  • Weld discoloration cleaning
  • Metal maintenance
  • Preparation before primer or paint
APPLICATION LIMIT

The hand pad is intended for surface rust and oxidation. Scale, weld slag, weld stock, and corrosion pits require another abrasive process.

03
Coating Preparation Scuffing and Adhesion Preparation
  • Primer preparation
  • Paint scuffing
  • Coating adhesion preparation
  • Intercoat sanding
  • Repair-area blending
  • Edge and recess cleaning
  • Preparation before bonding
SURFACE PREPARATION

Use the selected pad to create a controlled surface texture before primer, paint, coating, or adhesive bonding.

04
Aluminum and Non-Ferrous Metal Cleaning and Grain Blending
  • Aluminum cleaning
  • Oxidation removal
  • Surface scuffing
  • Grain blending
  • Coating preparation
SAMPLE TEST REQUIRED

A sample test is required on anodized, plated, coated, or decorative surfaces.

05
Workshop Maintenance Cleaning and Local Surface Work
  • Equipment cleaning
  • Tool maintenance
  • Mold cleaning
  • Adhesive-residue removal
  • Surface-mark blending
  • Edge burr removal
MAINTENANCE USE

Suitable for controlled manual cleaning, blending and light edge-refinement processes in workshop environments.

Why Work with AoZhong

Manufacturing, conversion, inspection and OEM support for non-woven abrasive hand pads and surface-conditioning products.

01
MANUFACTURING

Non-Woven Abrasive Manufacturer

Manufacturer of non-woven abrasive products.

02
PROCESS CONTROL

Web-to-Pad Production

Production control from fiber web to finished pad.

03
SPECIFICATIONS

Controlled Manufacturing

Specification-based manufacturing for B2B orders.

04
CONVERSION

Multiple Product Formats

Hand-pad and converted-product production.

05
SAMPLE CONTROL

Pre-Production Approval

Sample approval before volume production.

06
TRACEABILITY

Batch Identification

Batch identification supports order traceability.

07
INSPECTION

Product Property Checks

Inspection of dimensions, thickness, density and surface result.

08
PRIVATE LABEL

OEM Packaging Support

OEM support for printing, label, bag, box and carton.

09
CUSTOM FORMATS

Converted Abrasive Supply

Conversion into strips, rolls, discs and die-cut shapes.

10
APPLICATION SUPPORT

Metal Finishing Guidance

Application support for metal finishing and rust removal.

Frequently Asked Questions

Information about AoZhong manufacturing, production consistency, sample testing, OEM conversion and quotation requirements.

01 Is AoZhong a manufacturer of Red Non-Woven Abrasive Hand Pads?

Yes. AoZhong controls fiber-web formation, abrasive and resin application, curing, cutting, conversion, inspection, printing, and packaging. Samples and specifications can be provided before volume production.

02 How does AoZhong control consistency between orders?

Production follows an approved specification covering abrasive grain, fiber, grade, thickness, density, dimensions, printing, and packaging. Batch codes and retained samples support comparison between production lots.

03 Can buyers test samples before placing an order?

Yes. Samples can be tested for rust removal, metal graining, cut rate, scratch pattern, folding, shedding, and service life. Testing should be completed on the buyer’s workpiece and production process.

04 Can AoZhong provide OEM packaging and product conversion?

Yes. OEM options include product dimensions, grade, thickness, density, printing, private-label packaging, strips, rolls, discs, hook-and-loop backing, foam backing, and die-cut shapes.

05 What information is required for a quotation?

Provide the product size, thickness, grade, order quantity, target material, application, printing, packaging, and converted format. If the surface result must match an existing product, provide a sample or workpiece reference.
