6 Inch 8-Hole Sanding Disc for Metal and Wood

No.DP-150-8H-P120-HL
Source 6 inch P120 aluminum oxide sanding discs with eight dust extraction holes and hook-and-loop backing from Aozhong. OEM grit, hole pattern, printing and packaging services for distributors and industrial buyers.
Product Name
Patterned Sanding Disc
Abrasive Material
Aluminum Oxide
Backing Type
Hook & Loop
Backing Material
Paper Backing
Surface Design
Anti-Clogging Pattern
Disc Diameter
5 inch / 6 inch
Hole Type
No Hole / 6 Hole / 8 Hole / Multi-hole
Grit Range
P40–P1200
Operating method
Machine sanding
Main substrates
Metal, wood, primer, paint and coatings
Packaging
According to order specification
  • 6 Inch 8-Hole Sanding Disc for Metal and Wood,8 Holes Blue Pattern Sanding Discs for metal surface finishing
  • 6 Inch 8-Hole Sanding Disc for Metal and Wood,8 Holes Blue Pattern Sanding Discs for metal surface finishing

Description

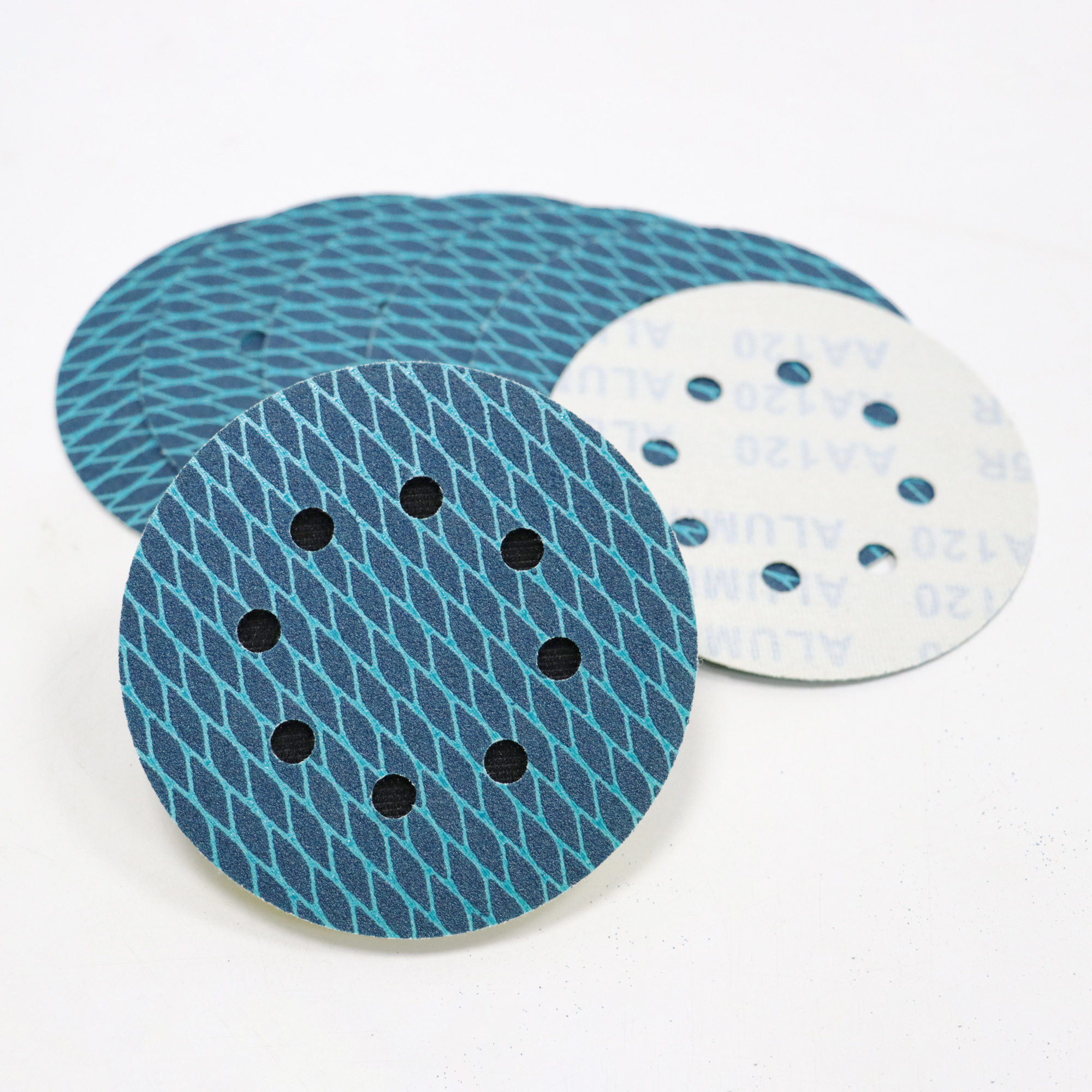

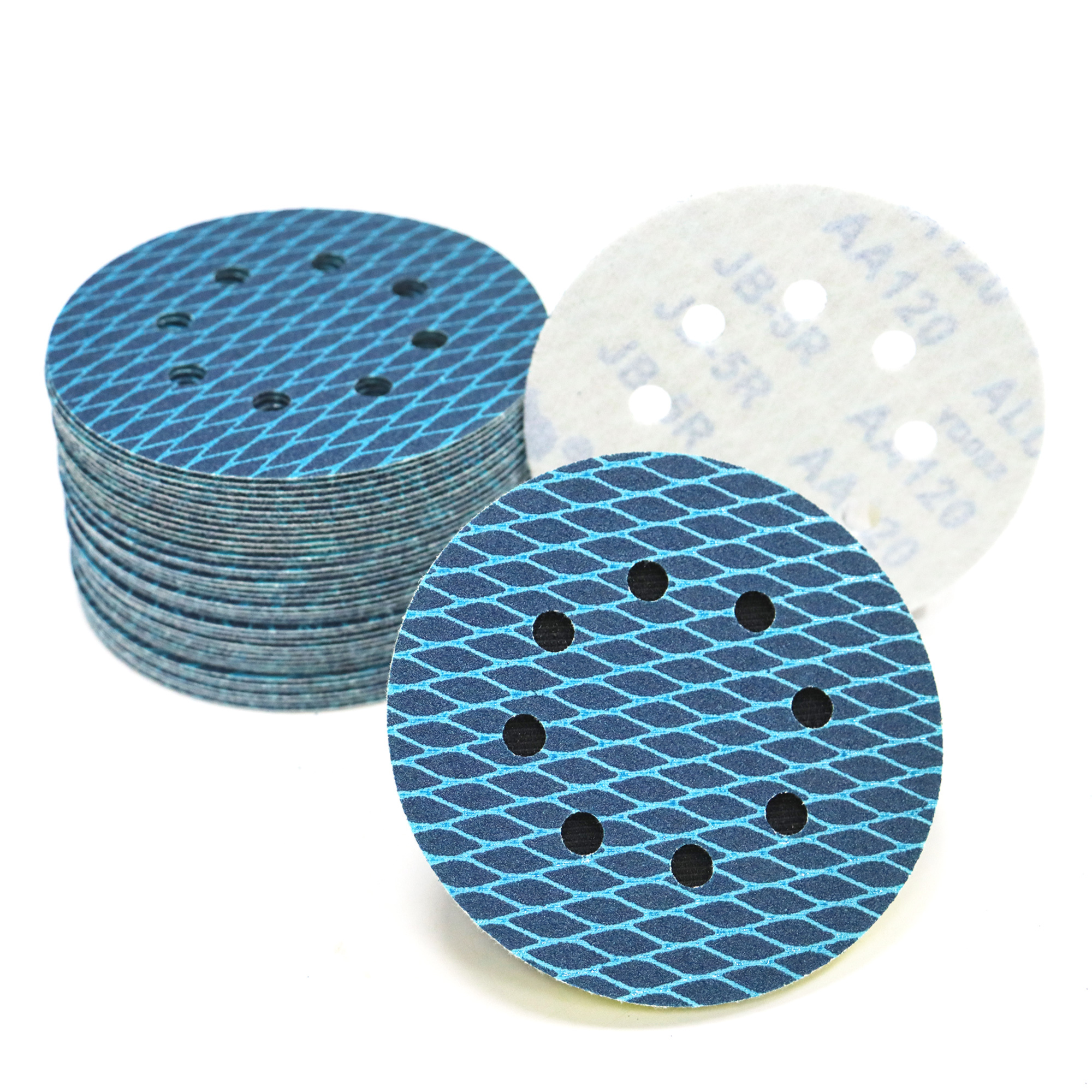

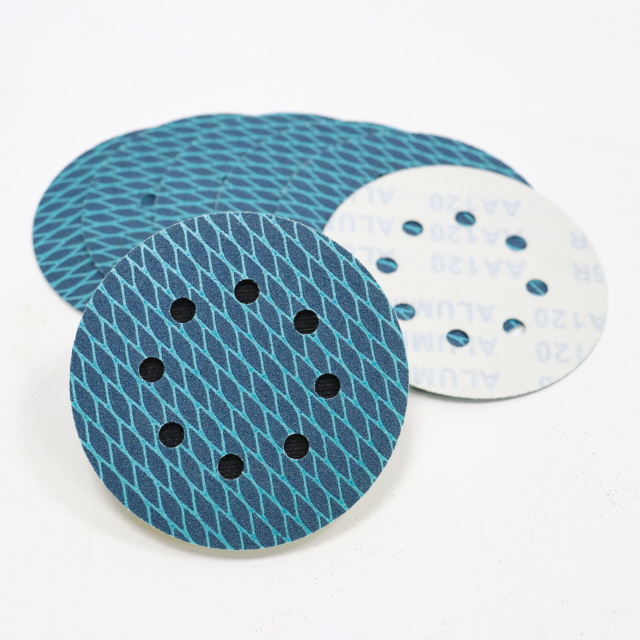

6 Inch 8-Hole Diamond-Pattern Hook and Loop Sanding Disc

The 6 Inch 8-Hole Diamond-Pattern Hook and Loop Sanding Disc uses aluminum oxide abrasive, a patterned coating, eight dust extraction holes, and a hook-and-loop attachment system.

The diamond-pattern surface divides the abrasive coating into grinding zones and channels. These channels provide paths for sanding dust during random orbital sanding. The eight-hole layout connects with a matching dust extraction backing pad to move dust away from the contact area.

The P120 version is used for metal finishing, primer sanding, coating preparation, wood coating sanding, and scratch refinement. The product is supplied to abrasive distributors, industrial suppliers, woodworking suppliers, metalworking companies, and OEM buyers.

Product Features

01

Aluminum Oxide Abrasive

For metal, wood, primer, paint, and coating applications.

02

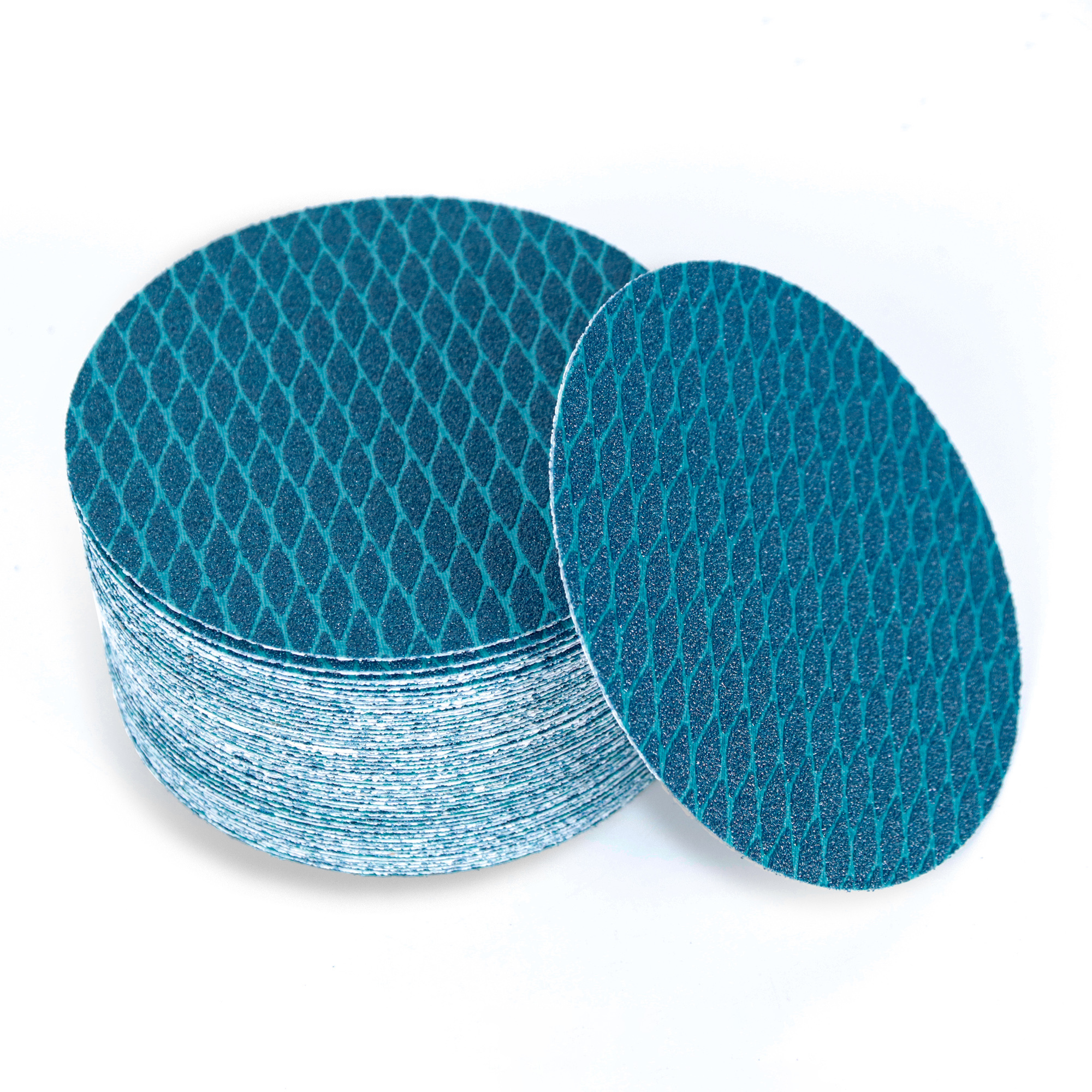

Diamond-Pattern Coating

Creates channels between the abrasive zones.

03

Eight Extraction Holes

Connect with a matching sander backing pad.

04

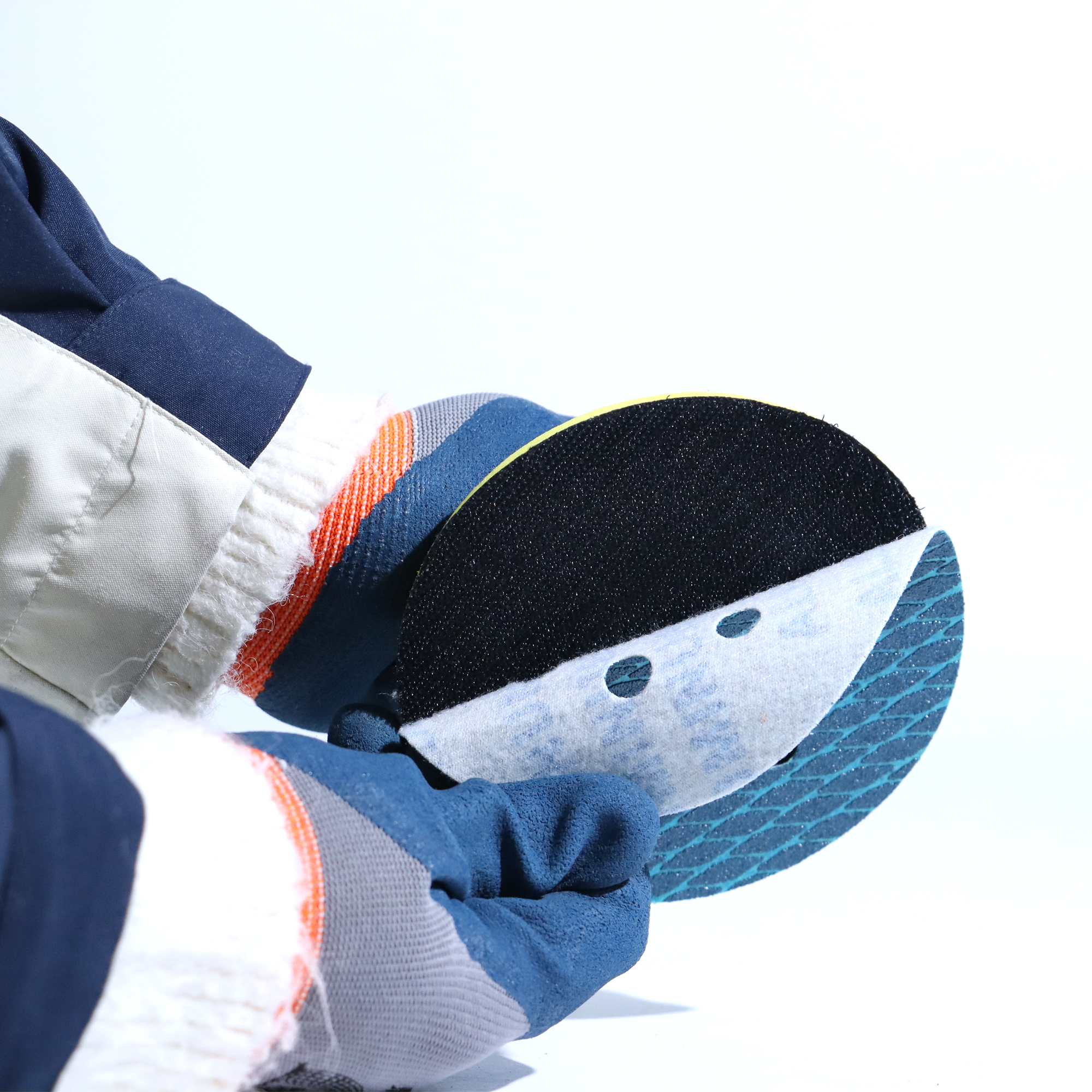

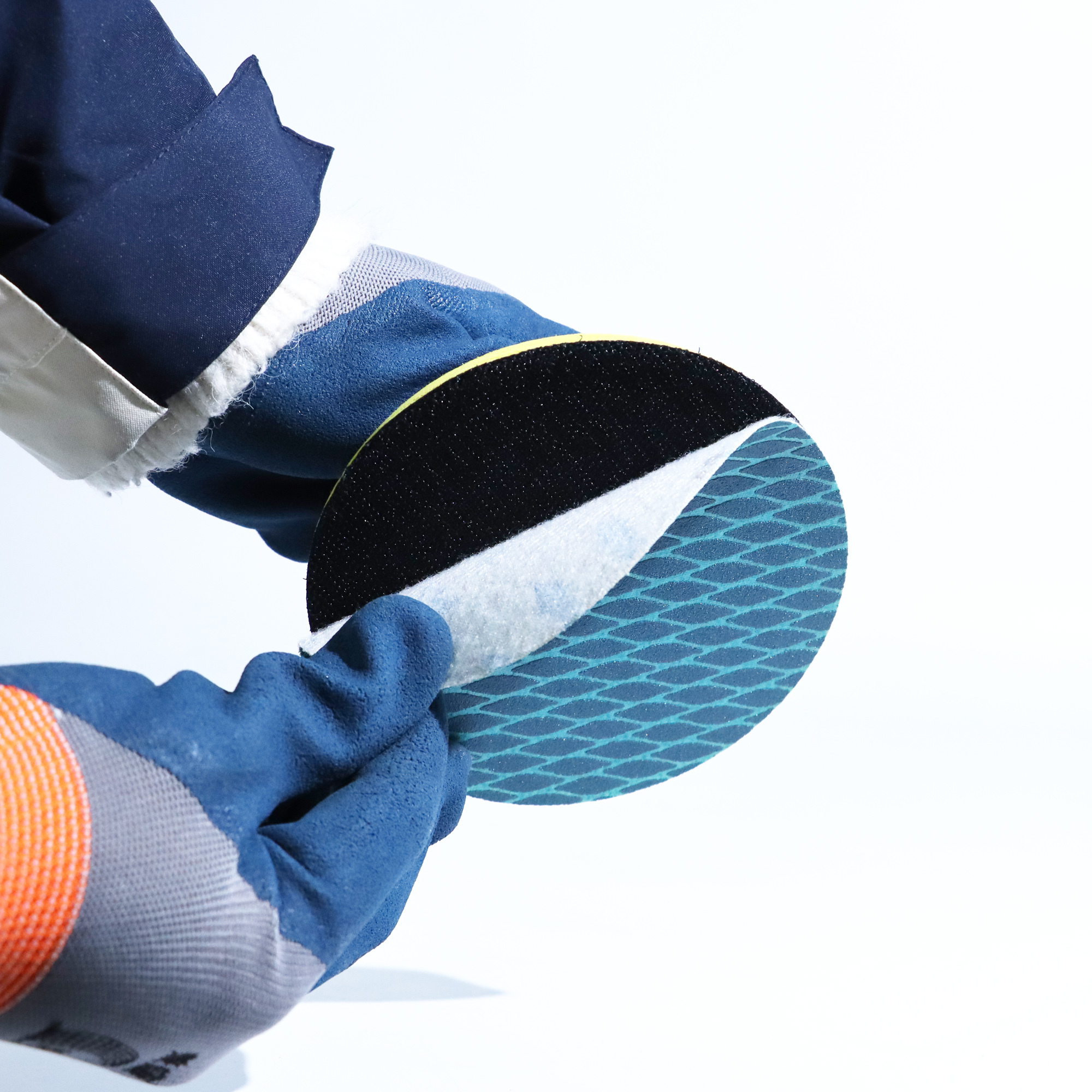

Hook-and-Loop Backing

Supports disc installation and replacement.

AOZHONG P800 6 INCH
DIAMOND PATTERN 8-HOLE SANDING DISC
05

P800 Grit

Supports scratch refinement and coating preparation.

06

6 Inch Format

Fits compatible random orbital sanders.

07

Printed Grit Identification

Supports stock and process control.

08

OEM Production Options

Hole pattern, grit, packaging, and printing can be produced for OEM orders.

09
BATCH INSPECTION

Batch inspection covers dimensions, hole position, attachment, and packaging.

Applications

Application Area Typical Applications Usage Guidance
01
Metalworking Finishing and scratch refinement
  • Carbon steel surface preparation
  • Stainless steel scratch refinement
  • Aluminum surface preparation
  • Primer sanding
  • Coating sanding
  • Paint preparation
  • Filler sanding
  • Oxide-film removal
  • Finishing before coating
  • Refinement after a previous sanding step
P800 is intended for finishing and scratch refinement. It is not intended for weld removal, scale removal, heavy rust removal or stock removal.
02
Woodworking Coating and sealer preparation
  • Wood coating sanding
  • Sealer sanding
  • Primer sanding
  • Furniture coating preparation
  • Lacquer sanding
  • Paint-layer preparation
  • Surface refinement between coating stages
  • Defect correction on cured coatings
For bare wood leveling or material removal, use a lower grit before progressing to P800.
03
Other Materials Application testing required
  • Plastic
  • Composite material
  • Cured filler
  • Clear coat
  • Industrial coating
  • Artificial board coating
Application testing may be conducted to confirm scratch pattern, surface compatibility and the required finishing result.

Aozhong Manufacturing Support

Aozhong is an abrasive product manufacturer with production and converting facilities. Manufacturing coverage includes abrasive coating, curing, laminating, punching, converting, inspection and packaging. OEM and private-label services are available for distributors, importers and industrial supply companies.

Production Stage Control Items Control Focus
01
Material Control Incoming material verification
  • Abrasive grain inspection
  • Resin and backing-material verification
Verifies the abrasive grain, resin and backing materials before coating and converting.
02
Coating and Curing Abrasive production control
  • Coating-weight monitoring
  • Abrasive-distribution inspection
  • Curing-process records
Monitors coating application, abrasive distribution and curing conditions according to the production specification.
03
Disc Conversion Dimensions and hole pattern
  • Disc diameter inspection
  • Edge-cutting inspection
  • Hole-count verification
  • Hole-diameter inspection
  • Hole-position inspection
Checks finished disc dimensions, edge condition and extraction hole layout against the approved specification.
04
Finished-Product Control Attachment and identification
  • Hook-and-loop attachment inspection
  • Grit and product-code verification
Confirms attachment construction, grit identification and product-code information before packing.
05
Batch and Packaging Control Traceability and shipment review
  • Batch identification
  • Sample retention
  • Packaging and quantity checks
Supports batch identification, retained sample management and verification of packing quantities.
OEM
Custom Manufacturing

Aozhong supports customization of disc diameter, grit, hole configuration, backing, printing and packaging.

TEST
Sample Evaluation

Samples can be supplied to B2B customers for testing cut rate, abrasive life, scratch pattern, loading and machine compatibility before order confirmation.

Frequently Asked Questions

01 Is Aozhong a manufacturer or a trading company?

Aozhong is an abrasive product manufacturer with production and converting facilities. Its product range includes sanding discs, abrasive rolls, sanding belts, sponge abrasives, mesh abrasives and non-woven abrasives.

02 Can you provide samples before a production order?

Yes. Samples can be supplied for backing-pad fit, cut-rate, scratch-pattern, loading, abrasive-life and dust-extraction tests. The approved sample can be used as a reference for the production order.

03 How do you control the eight-hole layout?

The hole count, hole diameter, pitch circle and punching position can be inspected against an approved drawing. Buyers should provide a backing-pad drawing or sample when the machine hole pattern has not been confirmed.

04 Can the product be supplied with OEM packaging?

Yes. Aozhong supports label, barcode, box, carton, pack quantity and private-label requirements. Packaging details are confirmed before production.

05 How is batch consistency controlled?

Production control can include incoming-material records, coating checks, grit verification, dimensional inspection, hole-position inspection, backing inspection, batch identification, sample retention and final packaging inspection.
