Abrasive Belt For Metal Surface Finishing

No.AZ-AO-AB-MSF
The elastic fiber structure helps create smooth, controllable scratch patterns without damaging the workpiece surface. This makes the product particularly suitable for satin polishing of stainless steel
Product Name
AoZhong Abrasive Belt
Abrasive Material
Aluminum Oxide / Silicon Carbide
Backing
Cloth Backing
Structure
Open Web Non-Woven Fiber
Belt Width
Customizable
Belt Length
Customizable
Color Options
Green / Red / Grey / Brown
Grit Range
Coarse / Medium / Fine / Very Fine
  • Abrasive Belt For Metal Surface Finishing,Abrasive Belt For Metal Surface Finishing
  • Abrasive Belt For Metal Surface Finishing,Abrasive Belt For Metal Surface Finishing
  • Abrasive Belt For Metal Surface Finishing,Abrasive Belt For Metal Surface Finishing
  • Abrasive Belt For Metal Surface Finishing,Abrasive Belt For Metal Surface Finishing
  • Abrasive Belt For Metal Surface Finishing,Abrasive Belt For Metal Surface Finishing

Description

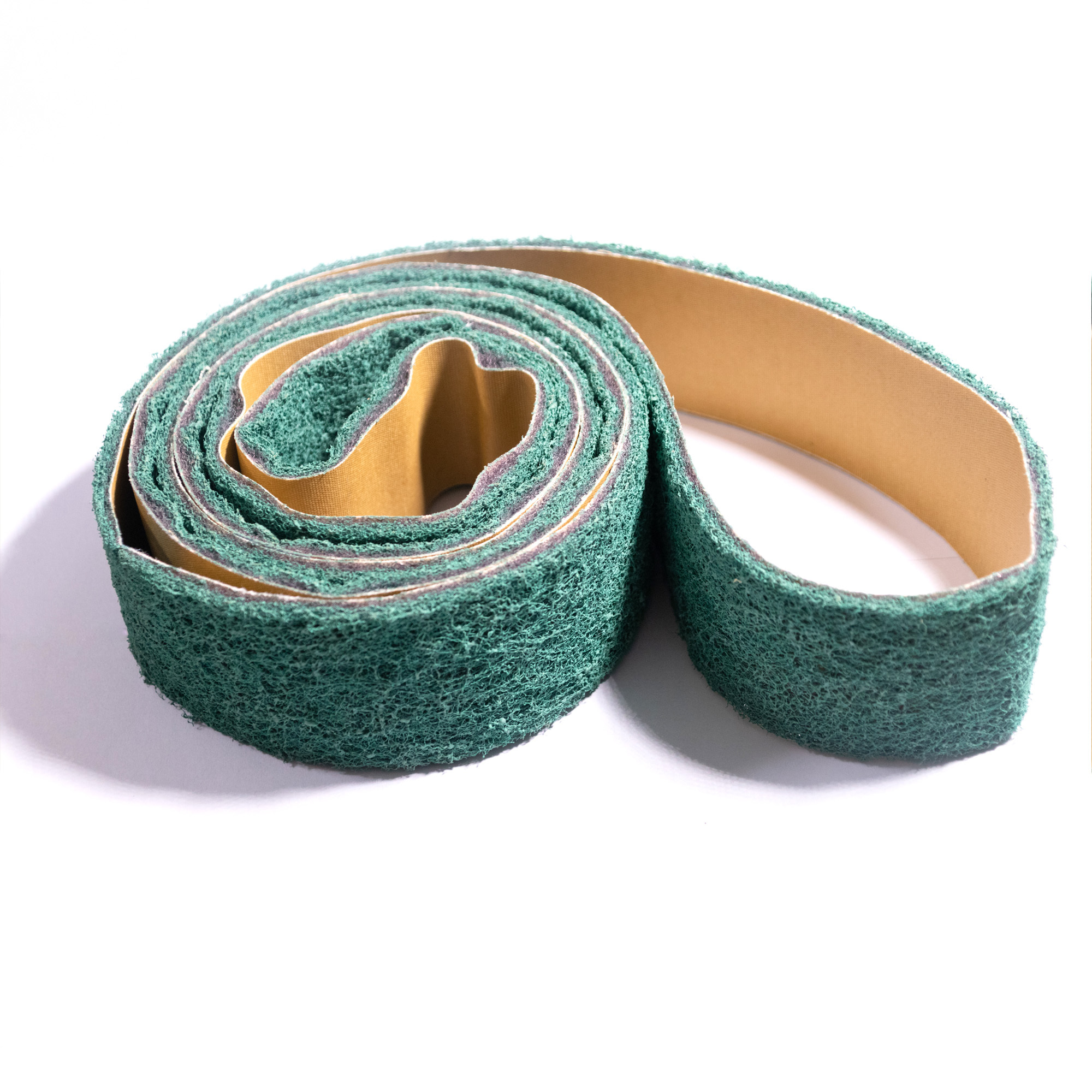

Non-Woven Abrasive Belt for Metal Surface Finishing

The Non-Woven Abrasive Belt for Metal Surface Finishing combines nylon web, aluminum oxide or silicon carbide grain, resin bonding, cloth backing, and a diagonal belt joint.

The open-web structure is used for deburring, weld blending, oxide removal, satin finishing, surface conditioning, and scratch-pattern control. It conforms to flat surfaces, tubes, edges, and formed metal parts while limiting dimensional change during finishing.

Aozhong manufactures non-woven abrasive belts for distributors, metalworking suppliers, stainless-steel processors, hardware manufacturers, finishing lines, and private-label programs. Belt width, circumference, abrasive grain, grade, color, joint, label, and packaging can be specified for each order.

Product Features

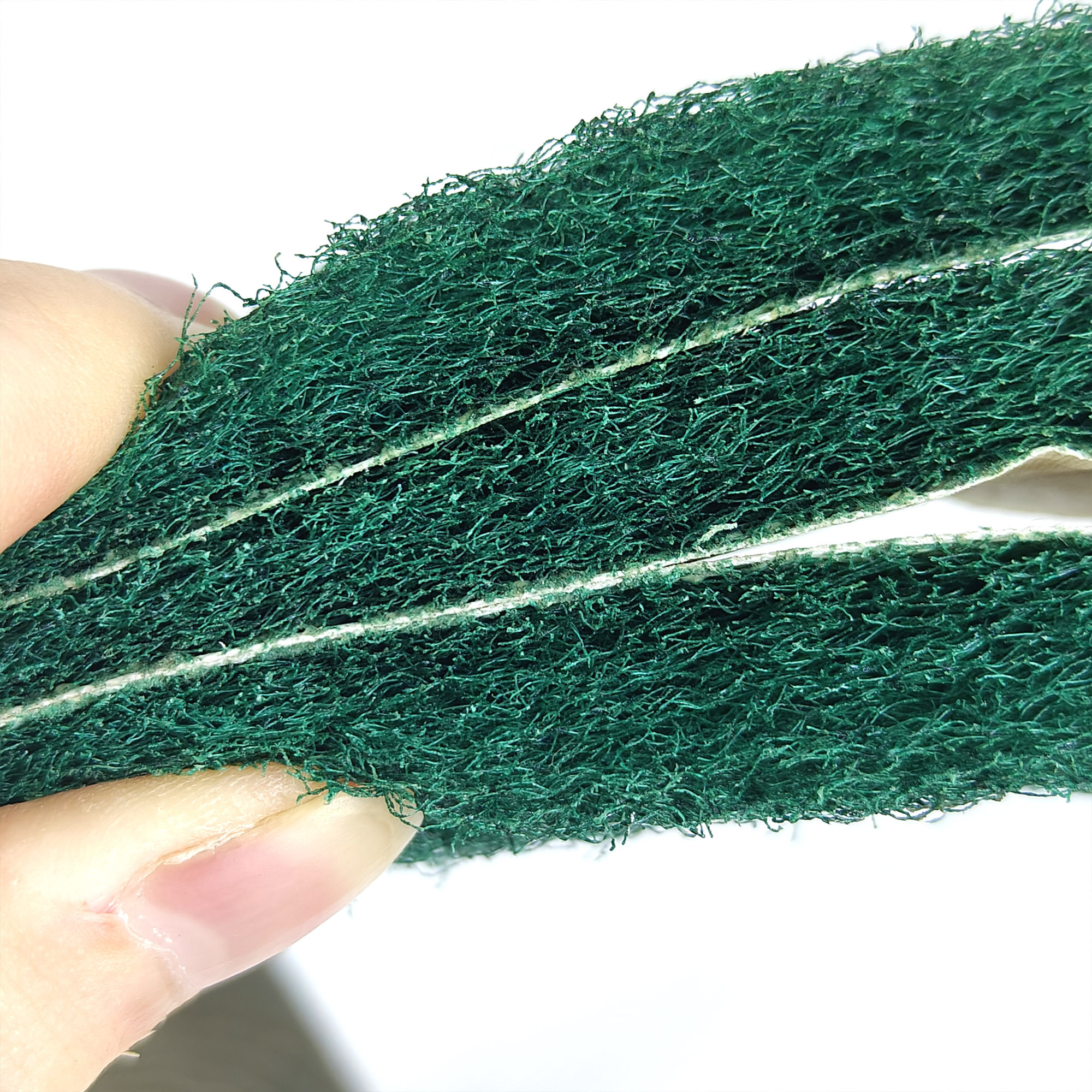

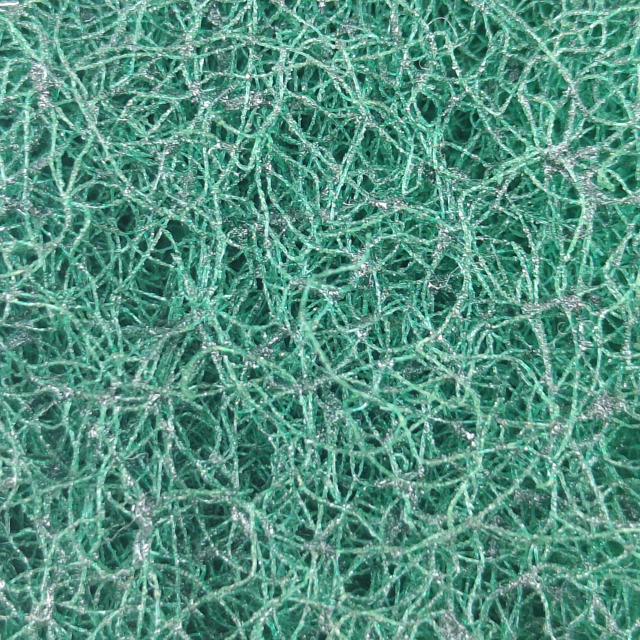

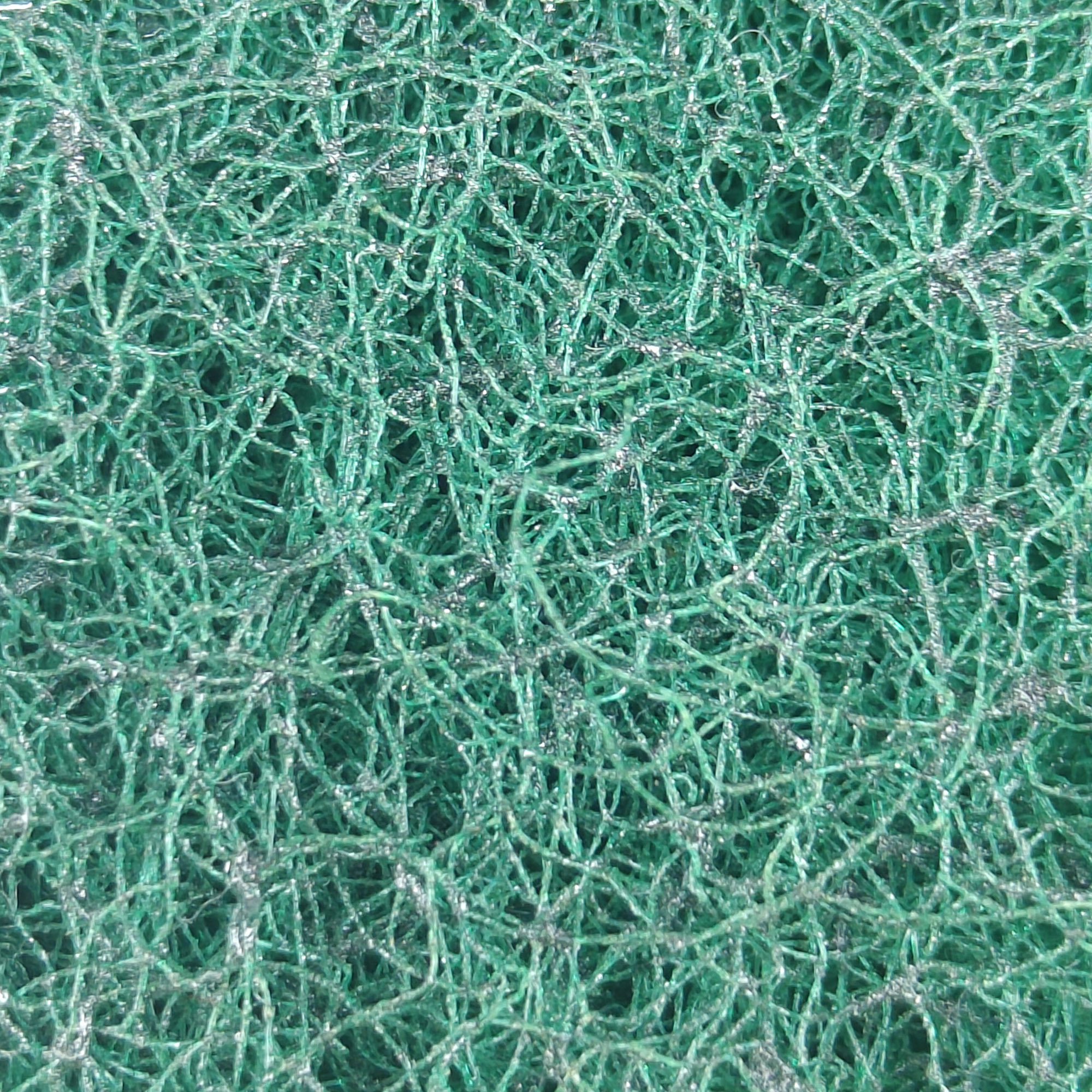

Open-web nylon structure provides space for metal particles and sanding debris.

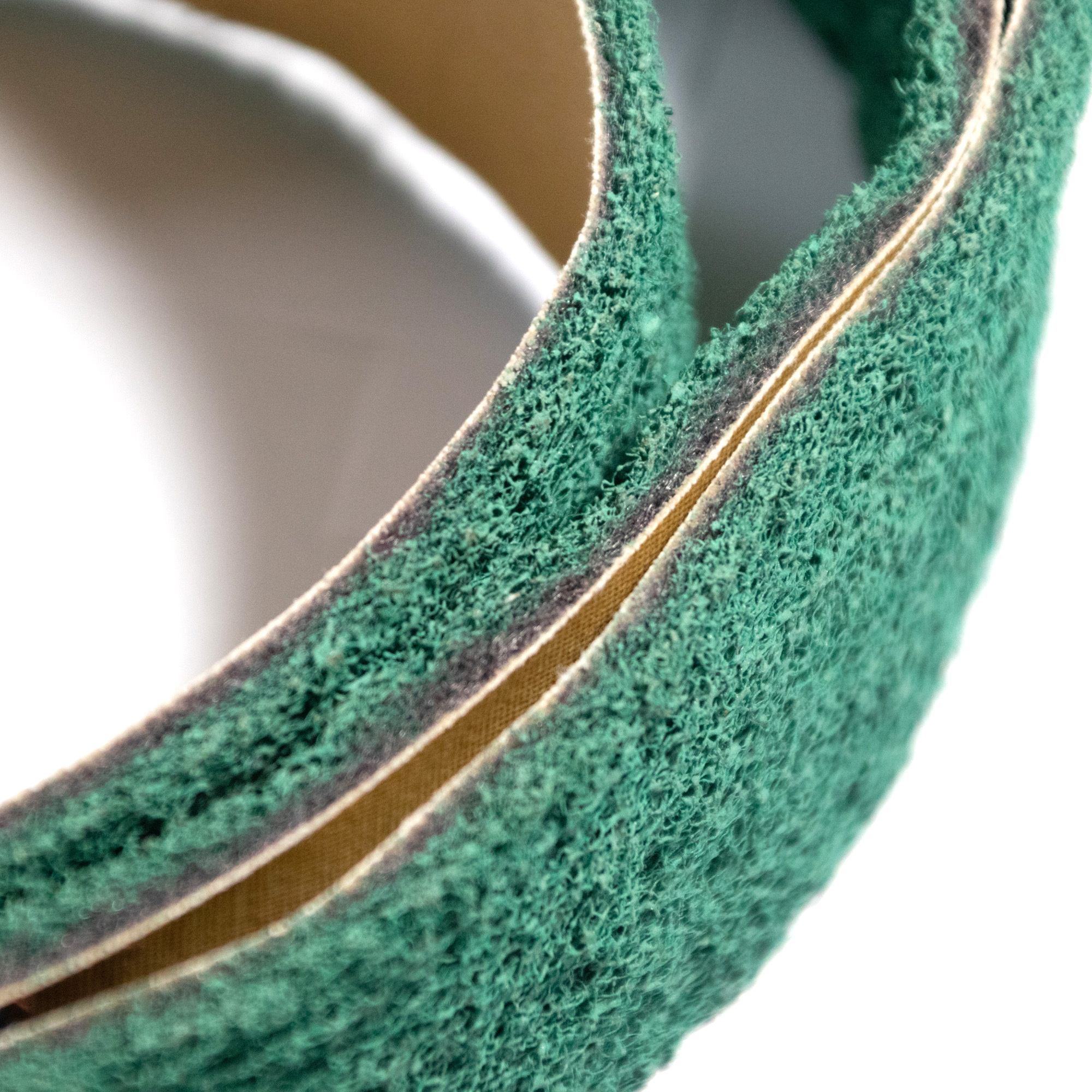

The fiber layer follows flat, curved, and formed surfaces.

Resin bonding holds abrasive grain within the web.

Cloth backing carries machine tension.

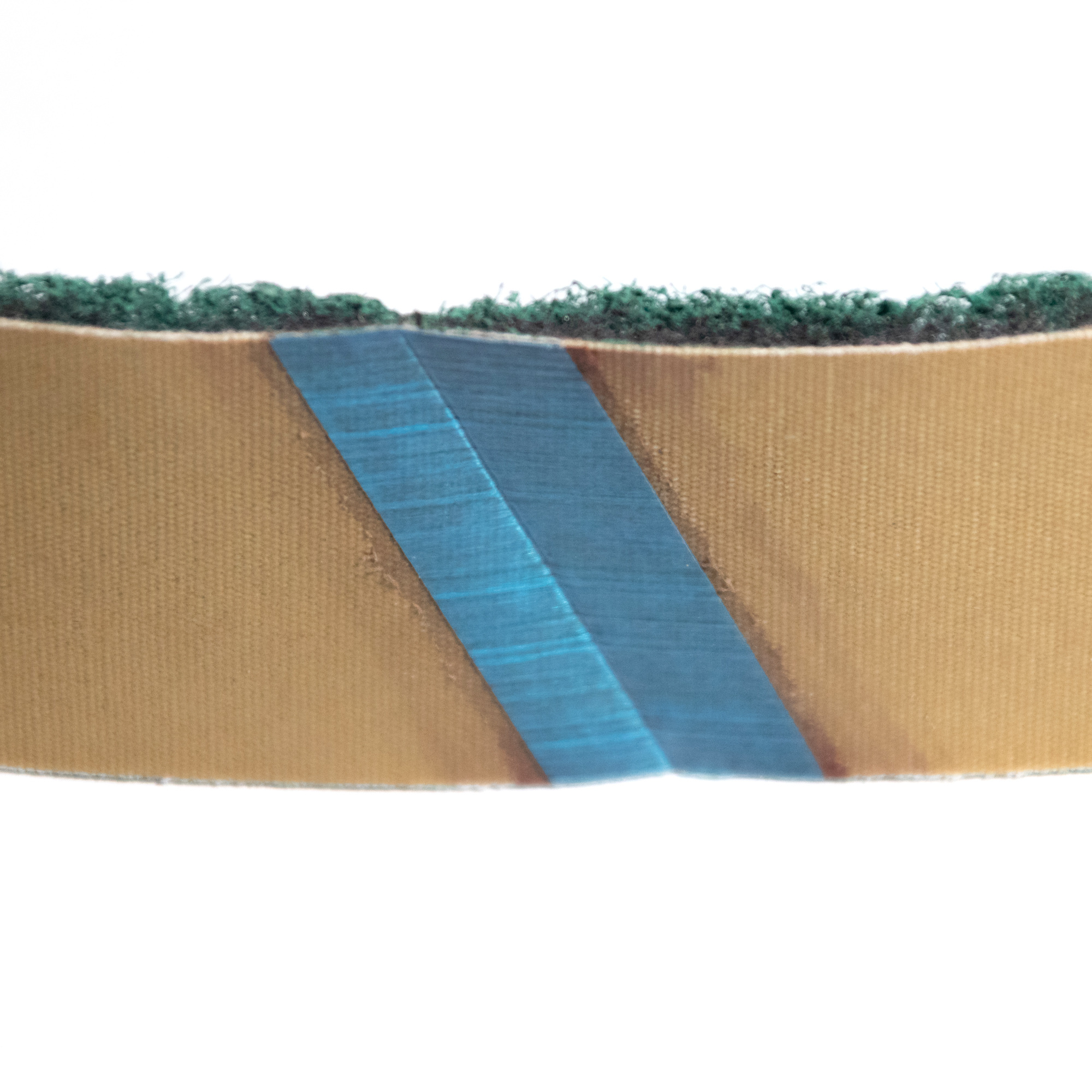

A diagonal joint distributes the joint transition across the belt width.

AOZHONG NON-WOVEN ABRASIVE BELT
OPEN-WEB STRUCTURE Deburring · Blending · Finishing

Coarse through Very Fine grades cover deburring, blending, and finish refinement.

Wet and dry configurations support different production processes.

Width and circumference can be converted for buyer equipment.

Grain, grade, color, joint, label, and packaging can be specified for OEM supply.

Cutting action, finish pattern, belt life, and workpiece temperature depend on grain, grade, fiber density, contact wheel, belt speed, pressure, coolant, and work material.

Open-Web Nylon Cloth Backing Diagonal Joint Wet & Dry OEM Supply

APPLICATIONS

Application Area Typical Applications Process Guidance
Stainless-Steel Finishing Stainless steel finishing belt
  • Sheet finishing
  • Tube finishing
  • Satin finishing
  • Brushed finish production
  • Weld discoloration removal
  • Weld-area blending
  • Scratch-pattern control
  • Surface preparation before polishing

The stainless steel finishing belt can be used for surface refinement, directional finishing, weld-area blending and preparation before polishing.

Deburring and Edge Blending Non-woven deburring belt
  • Edge burr removal
  • Stamped-part finishing
  • Laser-cut edge refinement
  • Machined-part blending
  • Tool-mark reduction
  • Surface transition after coated-abrasive grinding

It is intended for burr refinement rather than removal of large burrs or heavy material.

Weld Blending Common process sequence
  1. Remove weld stock with a coated abrasive belt.
  2. Refine the grinding scratches.
  3. Blend the weld area with a non-woven abrasive belt.
  4. Match the surrounding finish.
  5. Continue to polishing where required.
Stock Removal Scratch Refinement Weld Blending Finish Matching Polishing
Aluminum and Non-Ferrous Metals Finishing and preparation
  • Aluminum extrusion finishing
  • Aluminum sheet brushing
  • Die-cast part deburring
  • Copper and brass finishing
  • Oxide removal
  • Preparation before coating

For aluminum, belt grade, pressure, speed, and grinding fluid should be selected to control loading.

Hardware and Metal Components Industrial component finishing
  • Kitchenware
  • Metal furniture
  • Hand tools
  • Door hardware
  • Sanitary hardware
  • Automotive components
  • Bicycle and motorcycle parts
  • Metal enclosures

The belt can be used across hardware manufacturing and metal component production for surface blending, finishing and appearance control.

AOZHONG MANUFACTURING AND SUPPLY

Production Stage Control Items Control Purpose
Material Control Incoming Material Inspection
  • Nylon fiber verification
  • Abrasive grain verification
  • Resin batch control
  • Cloth-backing inspection
  • Joint-material inspection
  • Incoming-material batch records

Checks the nylon fiber, abrasive grain, resin, cloth backing and joint materials before web production and belt conversion.

Web and Bonding Control Abrasive Web Production
  • Fiber-density inspection
  • Abrasive-distribution checks
  • Resin-application control
  • Web-thickness inspection
  • Curing-condition records
  • Grade and color verification

Monitors fiber density, abrasive distribution, resin application, web thickness, curing conditions, grade and product color.

Belt Conversion Control Dimensions, Joint and Tracking
  • Width inspection
  • Circumference inspection
  • Edge-cutting inspection
  • Joint-angle inspection
  • Joint-thickness inspection
  • Joint-strength testing
  • Running-direction marking
  • Belt-tracking inspection

Checks finished belt dimensions, edge quality, joint construction, joint strength, running direction and belt tracking.

Batch and Packaging Control Identification and Shipment
  • Product-number verification
  • Grade and grain verification
  • Batch identification
  • Retained production samples
  • Label inspection
  • Quantity checks
  • Export-carton inspection

Verifies product identification, abrasive grade, grain, production batch, labels, packing quantity and export cartons.

Buyer Specification Control Pre-Production Confirmation

Aozhong produces non-woven abrasive belts for distributors, converters, industrial supply companies, metal-processing plants, finishing lines, and private-label programs.

These controls allow buyers to define belt dimensions, tolerances, grain, grade, joint construction, running direction, packaging, and acceptance criteria before production.

FAQ

Is Aozhong a non-woven abrasive belt manufacturer?

Yes. Aozhong manufactures and converts non-woven abrasive belts for distributors, metal-processing companies, finishing lines, industrial users, and private-label programs. Production covers web processing, bonding, curing, backing, belt conversion, jointing, inspection, and packaging.

Can Aozhong manufacture belts for our machine dimensions?

Yes. Buyers can provide belt width, circumference, machine model, running direction, speed, and a current belt sample. Dimensions and tolerances are confirmed before production.

Can samples be supplied before an order?

Yes. Samples can be prepared for surface-finish review, cutting tests, tracking checks, joint evaluation, wet or dry process testing, and packaging approval.

How does Aozhong control repeat-order consistency?

Fiber, abrasive grain, resin, backing, web thickness, belt dimensions, joint construction, grade, color, and packaging are checked by production batch. Approved samples and retained batch samples can be included in the quality plan.

Can Aozhong provide OEM packaging?

Yes. Available options include product labels, buyer logos, barcodes, boxes, pack quantities, export cartons, and pallet markings. Artwork, specifications, tolerances, and inspection criteria are confirmed before production.
