Industrial Diamond Powder
Cuts granite, marble, quartz and concrete.

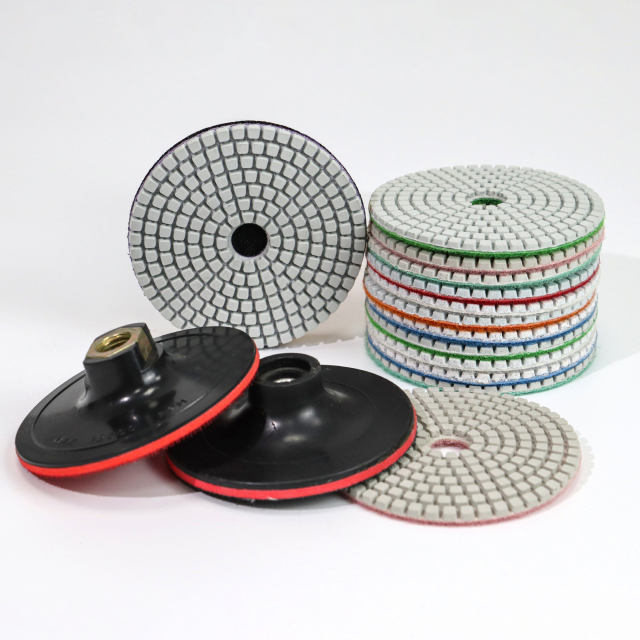

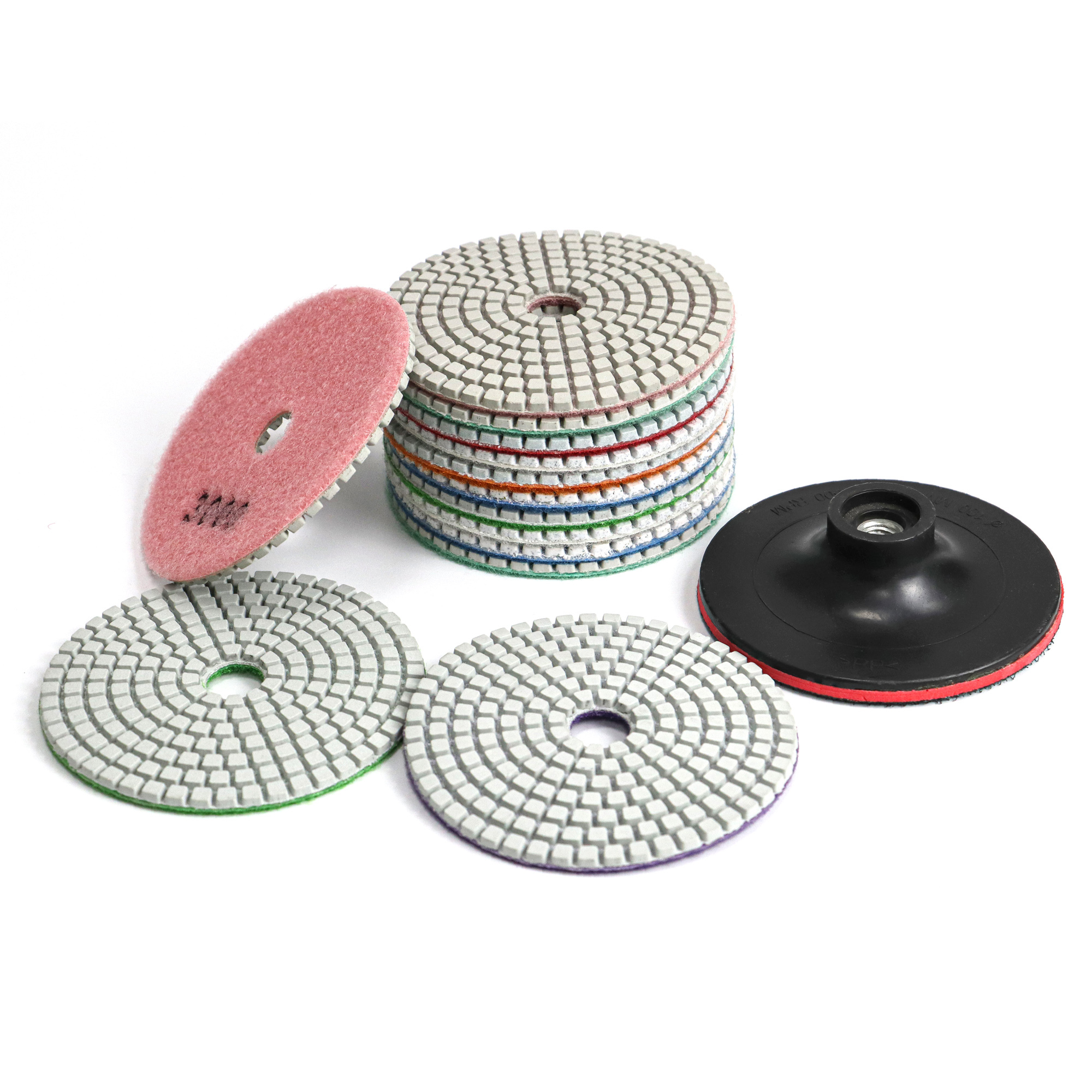

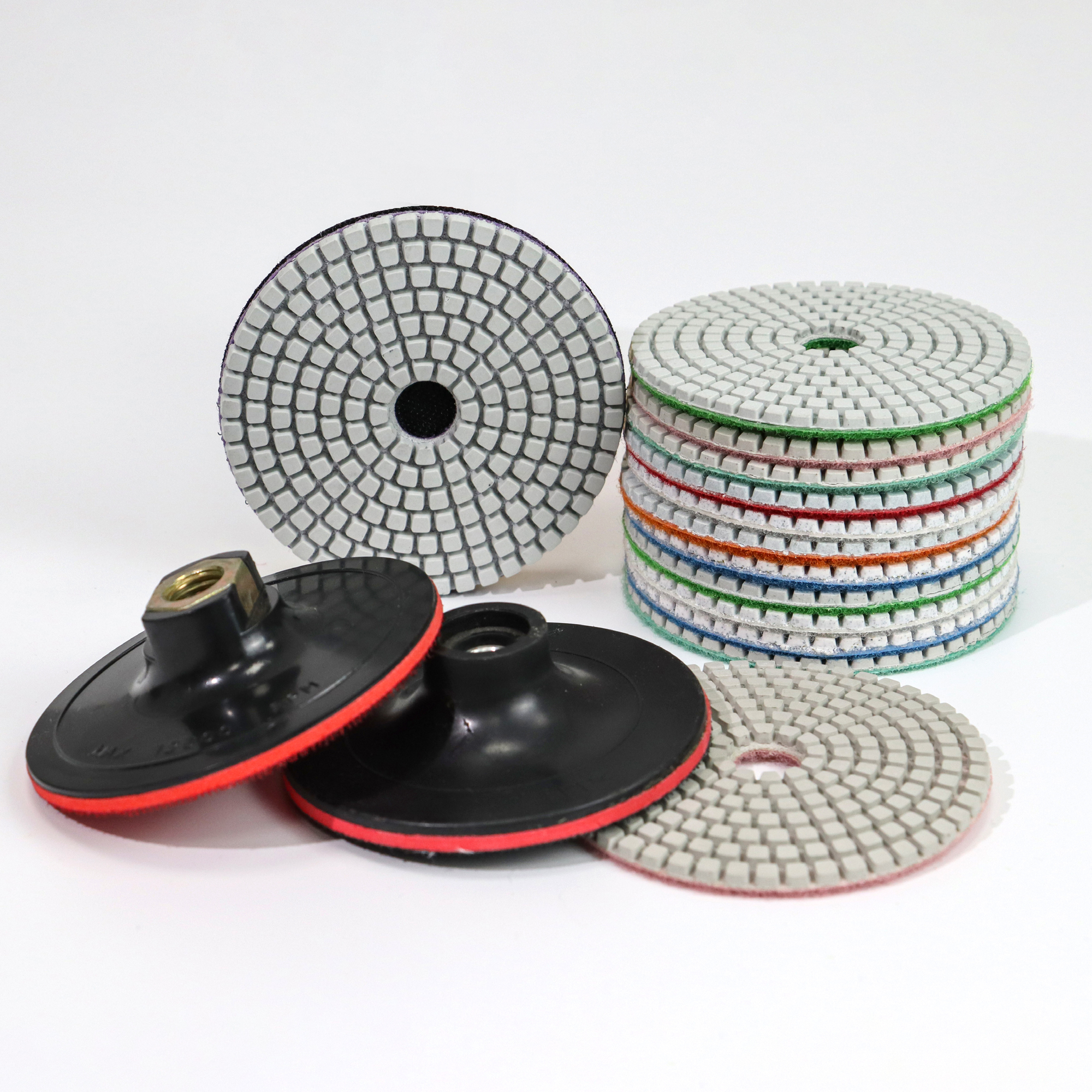

Aozhong Diamond Wet Polishing Pads use industrial diamond powder, a resin bond working layer, water-flow channels, a center hole, and hook-and-loop backing. The pads are used for grinding, scratch refinement, surface finishing, and polishing on granite, marble, quartz, engineered stone, terrazzo, concrete, ceramic, and tile.
The segmented working surface allows water and slurry to move between the resin blocks. Water removes heat, carries stone residue away from the contact area, and supports the transition between grit stages.
The product is available from 50# to 3000# for stone fabrication, countertop processing, edge polishing, surface repair, and installation work. Aozhong supplies distributors, wholesalers, stone-tool suppliers, fabricators, and OEM programs.
Cuts granite, marble, quartz and concrete.
Controls diamond retention and working-layer wear.
Create contact zones across the stone surface.
Carry water and stone slurry away from the grinding area.
Water controls heat during the polishing process.
Supports pad replacement between grit stages.
Follows countertop edges, radii and profiles.

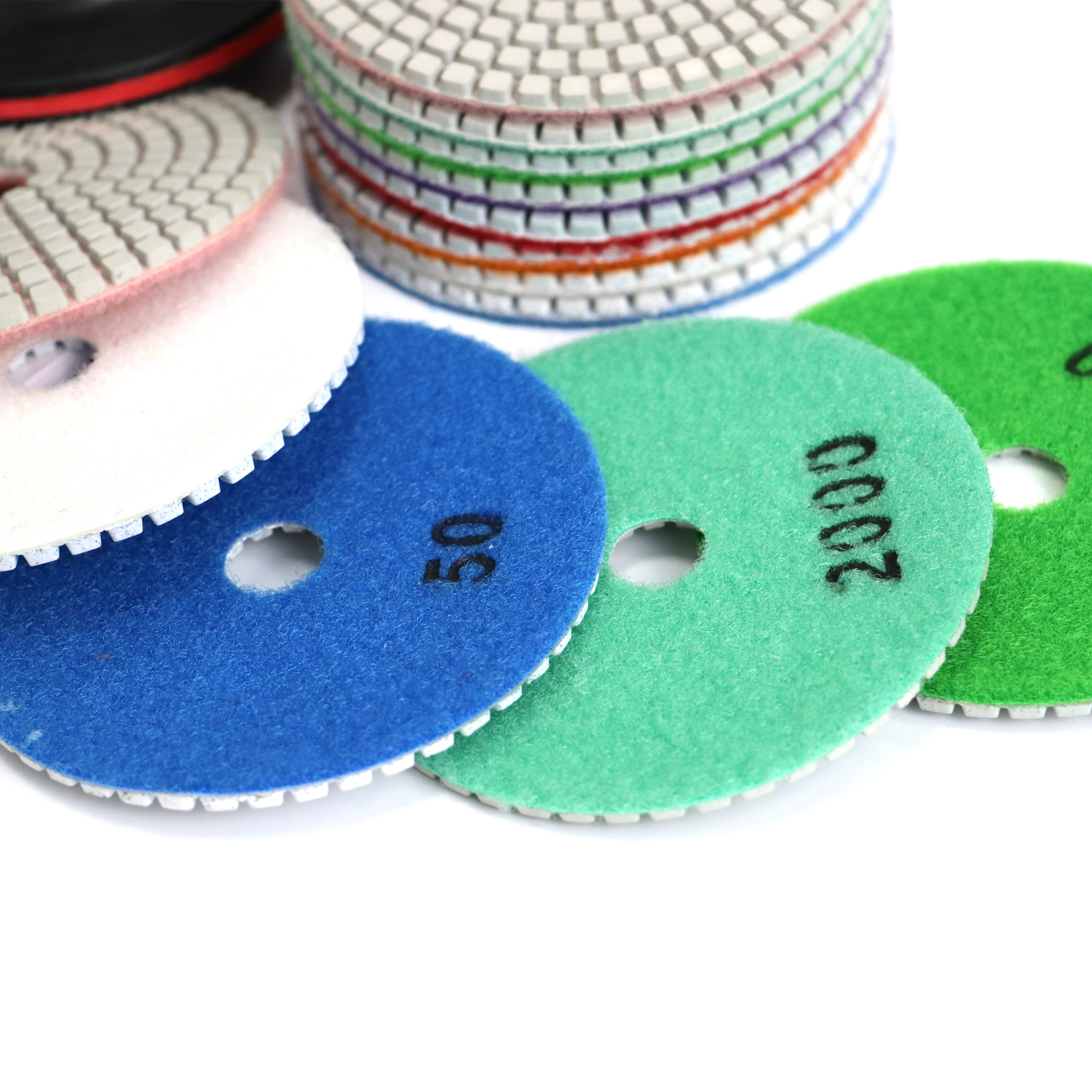

Grit marking supports warehouse and process identification.
Cover grinding, scratch refinement and polishing stages.
Product dimensions and packaging can be configured.
Industrial diamond powder provides the cutting points used to remove saw marks, grinding scratches and surface irregularities from mineral-based materials.
The resin matrix holds the diamond particles during operation. As the matrix wears, new diamond cutting points are exposed. Bond hardness, diamond concentration and stone type affect cut rate, pad wear and surface finish.

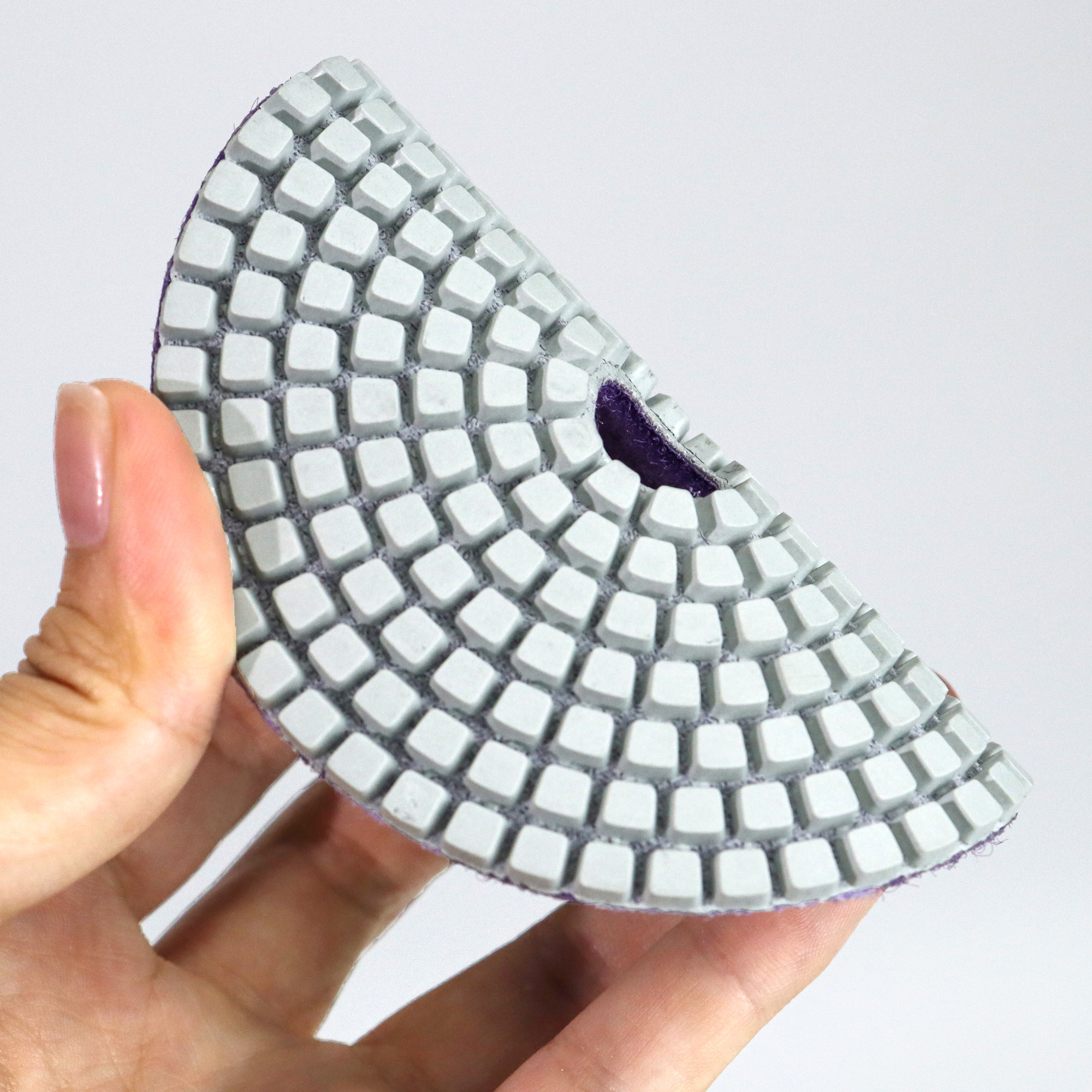

The face contains resin blocks arranged in circular rows. The spaces between the blocks provide channels for water, stone residue and polishing slurry.
The support layer connects the resin blocks to the attachment layer and allows the pad to follow edges, radii and surface contours.
The loop backing attaches to a matching hook backing pad. This system allows the operator to change grit stages without changing the holder.
The center hole supports pad alignment and water movement. Hole diameter must be confirmed against the pad holder and water-feed system.
| Material | Typical Applications | Processing Guidance |
|---|---|---|
|
01
Granite Grinding and polishing
|
|
The operator progresses through the grit sequence until the required surface finish is reached.
|
|
02
Marble Controlled surface polishing
|
|
Pressure, water flow and dwell time should be controlled to reduce edge damage and surface marks.
|
|
03
Quartz and Engineered Stone Edge and surface refinement
|
|
Sample testing is required because resin content, mineral content and slab formulation affect pad performance.
|
|
04
Concrete and Terrazzo Countertop and precast processing
|
|
A pad formulation intended for stone should be tested before use on concrete because bond wear differs by substrate.
|
|
05
Ceramic and Tile Edge finishing and correction
|
|
Pressure and grit progression must be controlled to limit chipping and glaze damage.
|
Aozhong manufactures abrasive and polishing products for distributors, wholesalers, stone-tool suppliers, industrial users and private-label programs.
| Production Stage | Manufacturing and Control Items | Control Focus |
|---|---|---|
|
01
Material Control Diamond and resin materials
|
|
Verifies the diamond powder, resin, filler and bond formulation before the working layer is produced.
|
|
02
Mixing, Molding and Curing Working-layer production
|
|
Controls material mixing, segment formation and curing according to the approved pad specification.
|
|
03
Lamination and Conversion Pad construction and dimensions
|
|
Builds the pad layers and converts the product to the required diameter and center-hole specification.
|
|
04
Finished-Product Inspection Surface and attachment checks
|
|
Checks pad thickness, segment condition, backing adhesion and grit identification before packaging.
|
|
05
Batch and Packaging Control Traceability and shipment review
|
|
Supports production traceability, retained sample management and final packaging verification.
|
Aozhong supports product development by diameter, thickness, resin bond, grit sequence, backing color, grit printing, label, barcode, inner box and export carton.
Samples can be supplied for stone testing before order confirmation. Buyers can evaluate material removal, scratch transition, gloss development, pad wear, resin transfer, segment condition and backing adhesion.
Yes. Aozhong manufactures and converts abrasive and polishing products for B2B supply. Product support covers sanding discs, abrasive rolls, sanding belts, non-woven abrasives, sponge abrasives and polishing pads.
Yes. Samples can be prepared for granite, marble, quartz, engineered stone or concrete testing. Buyers can check cut rate, scratch transition, gloss, pad wear and holder compatibility.
Control points can include raw-material records, bond-formulation records, curing records, diameter and thickness inspection, segment checks, backing-adhesion inspection, grit verification, batch coding and sample retention.
Yes. Grit combinations, backing colors, printed numbers, pack quantities, labels, barcodes, boxes and carton markings can be produced according to the approved order specification.
Provide the stone type, pad diameter, machine model, spindle thread, holder diameter, water-feed method, operating speed and required grit sequence. A holder sample or drawing can be used for fit confirmation.
