6-Inch (150mm) 17-Hole Hook-and-Loop Aluminum Oxide Polyester Film Sanding Disc P120

No.AOF-150-P120-17H-HL-G

The 6-Inch (150mm) 17-Hole Hook-and-Loop Aluminum Oxide Polyester Film Sanding Disc, P120 is manufactured for random orbital sanding of automotive filler, primer, paint, wood, metal, and composite surfaces.

Diameter
6 inch (150 mm)
Hole Count
17 holes
Grit
P120
Backing
Polyester film
Abrasive
Aluminum oxide
Application
Wood, metal, automotive, coated surfaces
  • 6-Inch (150mm) 17-Hole Hook-and-Loop Aluminum Oxide Polyester Film Sanding Disc P120,6-Inch (150mm) 17-Hole Hook-and-Loop Aluminum Oxide Polyester Film Sanding Disc P120
  • 6-Inch (150mm) 17-Hole Hook-and-Loop Aluminum Oxide Polyester Film Sanding Disc P120,6-Inch (150mm) 17-Hole Hook-and-Loop Aluminum Oxide Polyester Film Sanding Disc P120
  • 6-Inch (150mm) 17-Hole Hook-and-Loop Aluminum Oxide Polyester Film Sanding Disc P120,6-Inch (150mm) 17-Hole Hook-and-Loop Aluminum Oxide Polyester Film Sanding Disc P120

Description

6-Inch (150mm) 17-Hole Hook-and-Loop Aluminum Oxide Polyester Film Sanding Disc, P120

The 6-Inch (150mm) 17-Hole Hook-and-Loop Aluminum Oxide Polyester Film Sanding Disc, P120 is manufactured for random orbital sanding of automotive filler, primer, paint, wood, metal, and composite surfaces.

The disc combines aluminum oxide grain, resin bonding, polyester film backing, and a hook-and-loop attachment layer. Its P120 grit is used for surface leveling and scratch refinement between material-removal and finishing stages.

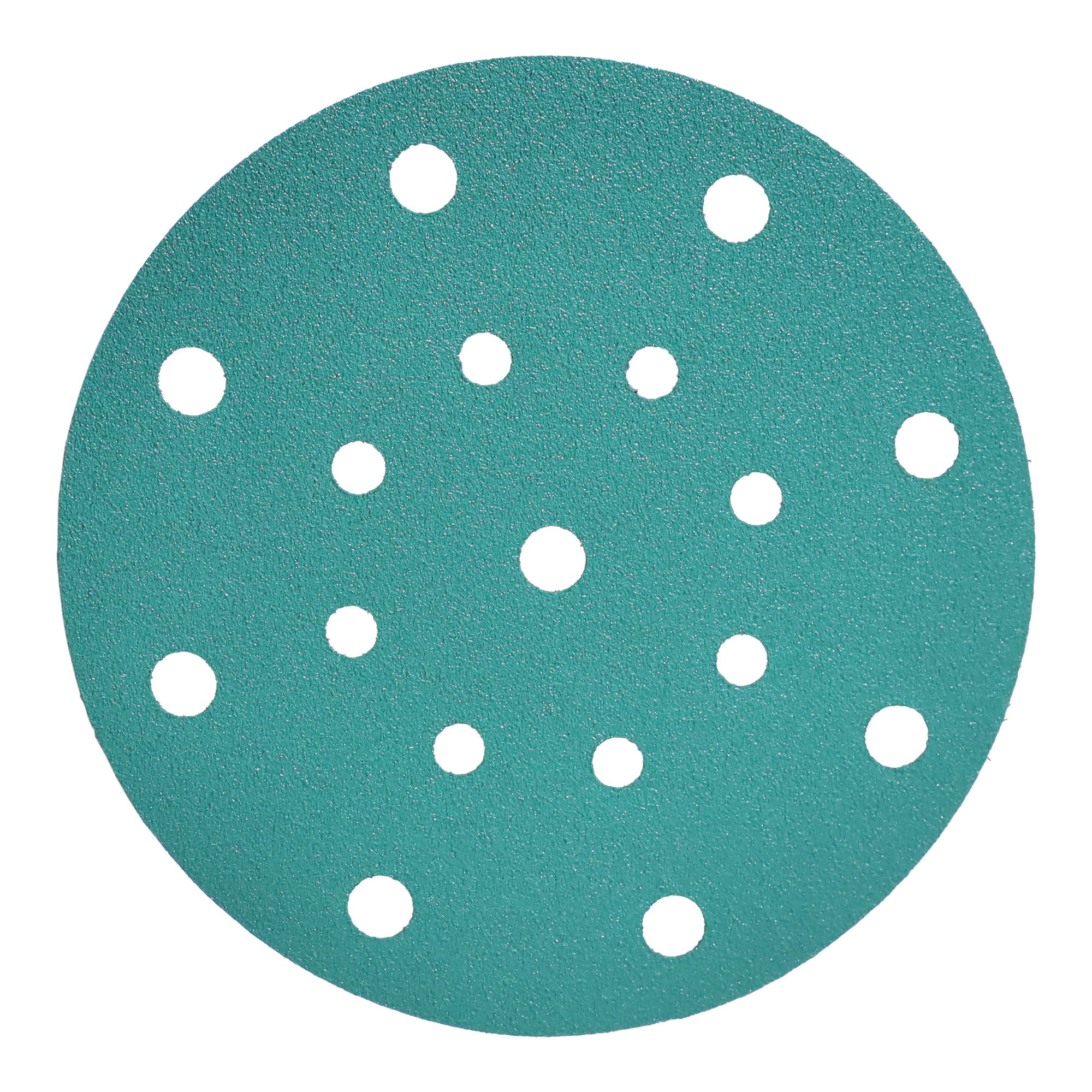

The 17-hole pattern consists of one center hole, eight inner holes, and eight outer holes. When aligned with the backing pad, the holes transfer sanding dust into the extraction channels.

Aozhong manufactures coated abrasive discs for distributors, importers, industrial suppliers, repair supply channels, and private-label programs. Production control covers raw materials, coating, curing, laminating, punching, converting, inspection, printing, and packaging.

Product Features

Designed for controlled surface leveling, scratch refinement and random orbital sanding across multiple materials.

Aluminum Oxide Grain

For wood, filler, primer, paint, metal and composite sanding.

Surface Refinement

P120 grit supports surface leveling and scratch refinement.

Polyester Film Backing

Polyester film backing supports dimensional control during sanding.

Supported Construction

Film construction supports the disc edge and extraction-hole areas.

Hook-and-Loop Attachment

Supports convenient disc installation and grit changes.

P120 150mm · 17-Hole
Aluminum Oxide Film Backing Hook & Loop 17-Hole

Seventeen Extraction Holes

Designed for use with a matching vacuum backing pad.

Center Extraction Hole

Connects with backing pads that use a center vacuum channel.

150 mm Format

Sized for compatible random orbital sanding systems.

Resin-Over-Resin Bonding

Resin-over-resin construction supports abrasive grain retention.

OEM Specifications

Available for distributors and private-label manufacturing programs.

Applications

Application guidance for P120 film sanding discs across automotive, woodworking, metal and coating-preparation processes.

Application Area Suitable Processes Operating Guidance
Automotive Refinishing Body repair and paint preparation
  • Body filler leveling
  • P80 scratch refinement
  • Filler-edge transition
  • Featheredge preparation
  • Old paint removal
  • Repair-panel sanding
  • Surface preparation before primer
  • Fiberglass component sanding
INTERMEDIATE GRIT

P120 is generally an intermediate sanding grit. It is not normally used as the final sanding step before basecoat or topcoat.

Select subsequent grits according to the coating technical data sheet.
Woodworking Wood leveling and coating preparation
  • Wood panel leveling
  • Furniture component sanding
  • Door and cabinet sanding
  • Plywood preparation
  • P80 scratch refinement
  • Coating removal
  • Preparation before primer
  • Preparation before paint
DUST EXTRACTION

For resinous wood and coating removal, connect the 150 mm sanding disc to a compatible dust-extraction system.

Avoid pressure that stops or restricts the orbital movement.
Metal Surface Preparation Cleaning and light refinement
  • Carbon-steel surface cleaning
  • Aluminum surface preparation
  • Paint removal
  • Coating removal
  • Light oxidation removal
  • Scratch transition
  • Preparation before primer
  • Preparation before painting
  • Light burr refinement
APPLICATION LIMIT

The aluminum oxide sanding disc is intended for surface preparation and light refinement.

Not intended for:
  • Metal cutting
  • Weld removal
  • Thick scale removal
  • Heavy burr grinding
Filler, Primer and Coating Sanding Repair and surface preparation
  • Polyester filler leveling
  • Putty sanding
  • Primer preparation
  • Old coating removal
  • Repair-area expansion
  • Scratch refinement before the next grit
GRIT SELECTION

P120 can support filler leveling, coating removal and scratch refinement within a multi-step sanding process.

Select the final grit according to the filler, primer, paint or coating system.
TYPICAL GRIT POSITION

P120 supports the transition from leveling to refinement.

P80 P120 P180 P240

Aozhong Manufacturing and Quality Control

Aozhong manufactures coated abrasive products for importers, distributors, industrial suppliers, automotive repair channels, woodworking suppliers and private-label customers.

Control Stage Inspection Items Control Focus
Raw Material Control Incoming material inspection
  • Aluminum oxide grain specification
  • Polyester film thickness
  • Resin batch verification
  • Hook-and-loop material inspection
  • Lamination material inspection
  • Incoming material identification
MATERIAL INPUT

Verifies abrasive grain, film, resin, attachment materials and incoming batch information before production.

Coating and Curing Control Abrasive production records
  • Coating weight
  • Grain distribution
  • Resin application
  • Oven temperature
  • Curing time
  • Batch identification
PROCESS CONTROL

Records coating application, abrasive distribution, curing conditions and production-batch identification.

Lamination and Conversion Control Disc construction and punching
  • Film-to-loop lamination
  • 150 mm disc cutting
  • Diameter inspection
  • Edge inspection
  • Seventeen-hole punching
  • Hole-diameter inspection
  • Hole-position inspection
  • Center-hole inspection
  • Delamination inspection
DISC CONVERSION

Checks lamination, finished diameter, disc edge and extraction-hole layout against the approved specification.

Product Inspection Finished-product verification
  • P120 grit verification
  • Abrasive-surface inspection
  • Disc-diameter measurement
  • Hole-count verification
  • Hole-layout comparison
  • Hook-and-loop attachment testing
  • Cutting test
  • Scratch-pattern review
  • Dust-extraction fit check
PRODUCT PERFORMANCE

Verifies product identity, dimensions, attachment, sanding behavior and compatibility with the specified backing pad.

Packaging Control Identification and shipment
  • Product number
  • Grit label
  • Backing print
  • Batch code
  • Quantity per box
  • Barcode
  • Carton marking
  • Export packaging
  • Retained samples
PACKAGING OUTPUT

Checks product identification, packing quantity, shipment markings and retained production samples.

FAQs

Answers about Aozhong manufacturing, 17-hole pattern control, sample testing, batch consistency and private-label packaging.

Is Aozhong a sanding disc manufacturer?

Yes. Aozhong manufactures coated abrasive discs for distributors, importers, industrial suppliers, repair supply channels and private-label programs. Production includes coating, curing, laminating, punching, converting, inspection, printing and packaging.

How does Aozhong control the 17-hole pattern?

Hole count, center-hole diameter, inner-hole diameter, outer-hole diameter, pitch circle and punching position can be inspected against an approved drawing. Buyers can provide a 1:1 pad drawing or physical backing-pad sample for compatibility checking.

Can we test samples before placing a production order?

Yes. Samples can be supplied for cutting tests, scratch-pattern review, backing-pad fit checks, hole alignment, attachment testing and packaging approval. Production specifications are confirmed after sample evaluation.

How is batch consistency controlled?

Incoming materials, coating settings, curing conditions, lamination, disc diameter, hole positions, attachment layers, grit markings, labels and packaging can be checked by production batch. Batch identification and retained samples can be included in the quality plan.

Can Aozhong manufacture private-label packaging?

Yes. Options include backing print, product labels, barcodes, inner boxes, pack quantities, export cartons and carton markings. Artwork, specifications, tolerances and inspection criteria are confirmed before production.
