7447-Type Non-Woven Abrasive Hand Pads

No.NW-AO-MR-VFN
7447-Type Maroon Non-Woven Abrasive Hand Pad for metal finishing, stainless steel grain blending, rust removal, cleaning, scuffing, and coating preparation. Size, thickness, density, conversion, printing, and packaging options from AoZhong.
Product Name
7447 Non-Woven Abrasive Pad
Product Type
Surface Conditioning Abrasive
Material
Nylon Fiber + Aluminum Oxide
Bonding System
Resin Bond
Size
Customization
Reference grade
Very Fine / A VFN
Common nominal size
6 × 9 in
Thickness
Confirmed by technical specification and sample
Structure
Open web
Use method
Hand use, hand block, or converted tool format
Main materials
Stainless steel, carbon steel, aluminum, coated metal, wood, plastic
Packaging
Bag, box, carton, or customer-specified packaging
OEM service
Size, thickness, density, shape, printing, label, and carton
  • 7447-Type Non-Woven Abrasive Hand Pads,7447-Type Non-Woven Abrasive Hand Pads
  • 7447-Type Non-Woven Abrasive Hand Pads,7447-Type Non-Woven Abrasive Hand Pads
  • 7447-Type Non-Woven Abrasive Hand Pads,7447-Type Non-Woven Abrasive Hand Pads
  • 7447-Type Non-Woven Abrasive Hand Pads,7447-Type Non-Woven Abrasive Hand Pads

Description

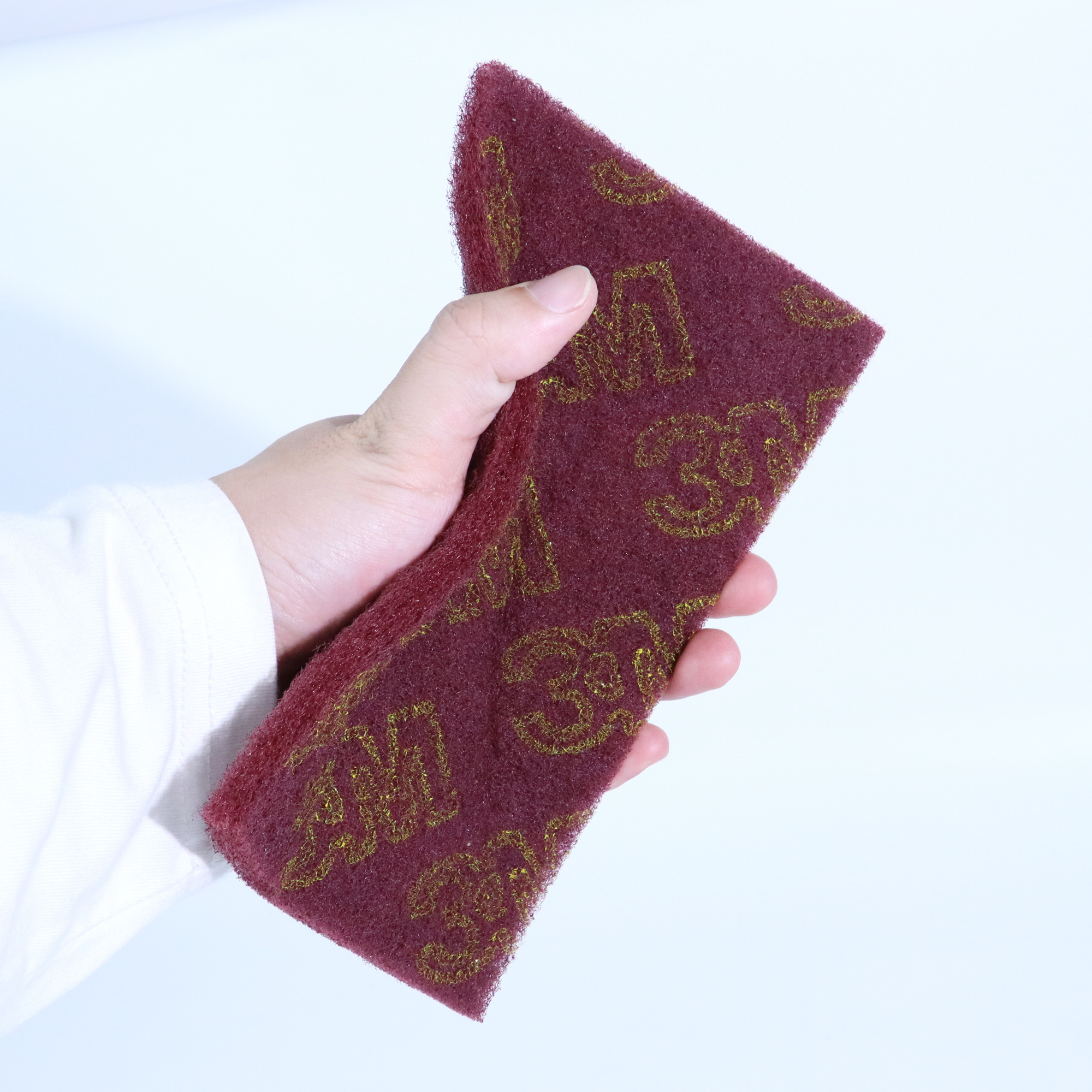

7447-Type Maroon Non-Woven Abrasive Hand Pad

The 7447-Type Maroon Non-Woven Abrasive Hand Pad is a surface conditioning product for metal finishing, grain blending, rust removal, cleaning, scuffing, and coating preparation.

The pad combines aluminum oxide abrasive, synthetic fiber, and resin in an open-web structure. It conforms to flat surfaces, edges, tubes, profiles, and contours. The material can be used by hand, with a hand block, or converted into discs, strips, hook-and-loop pads, and foam-backed pads.

AoZhong manufactures non-woven abrasive products for distributors, converters, metalworking plants, and volume buyers. Size, thickness, density, cutting grade, printing, converted shape, and packaging can be specified for each order.

Product Features

01

Aluminum Oxide Abrasive

Supports surface-conditioning processes.

02

Synthetic Fiber Web

Provides contact across flat and contoured surfaces.

03

Resin Bond

Retains the abrasive within the fiber structure.

04

Open-Web Structure

Provides space for swarf and sanding residue.

05

Maroon Identification

Supports grade identification within the product range.

06

Hand-Pad Format

Supports manual surface preparation.

AOZHONG MAROON NON-WOVEN PAD
NON-WOVEN HAND PAD SURFACE CONDITIONING
07

Foldable Construction

Follows edges, tubes, profiles, and difficult-to-reach areas.

08

Grain Blending

Supports finish blending on stainless steel and aluminum.

09

Surface Cleaning

Removes light rust, oxidation, dirt, and coating residue.

10

Surface Scuffing

Prepares surfaces before primer, paint, adhesive, or coating.

11

Converted Formats

Can be produced as sheets, strips, discs, and die-cut parts.

12

Backing Options

Hook-and-loop and foam-backed structures are available by order.

13
OEM AND PRIVATE-LABEL SUPPLY

Printed identification and private-label packaging are available according to the approved order specification.

Material and Structure

The 7447-Type Maroon Non-Woven Abrasive Hand Pad uses a three-dimensional abrasive structure.

01

Synthetic Fiber Web

Forms the pad body and supports bending, compression, and contour contact.

02

Aluminum Oxide Abrasive

Produces the cutting action required for cleaning, scuffing, blending, and surface preparation.

03

Resin Bond

Attaches the abrasive grain to the fiber intersections.

04

Open Voids

Hold rust, paint residue, oxide, and metal swarf during use.

05

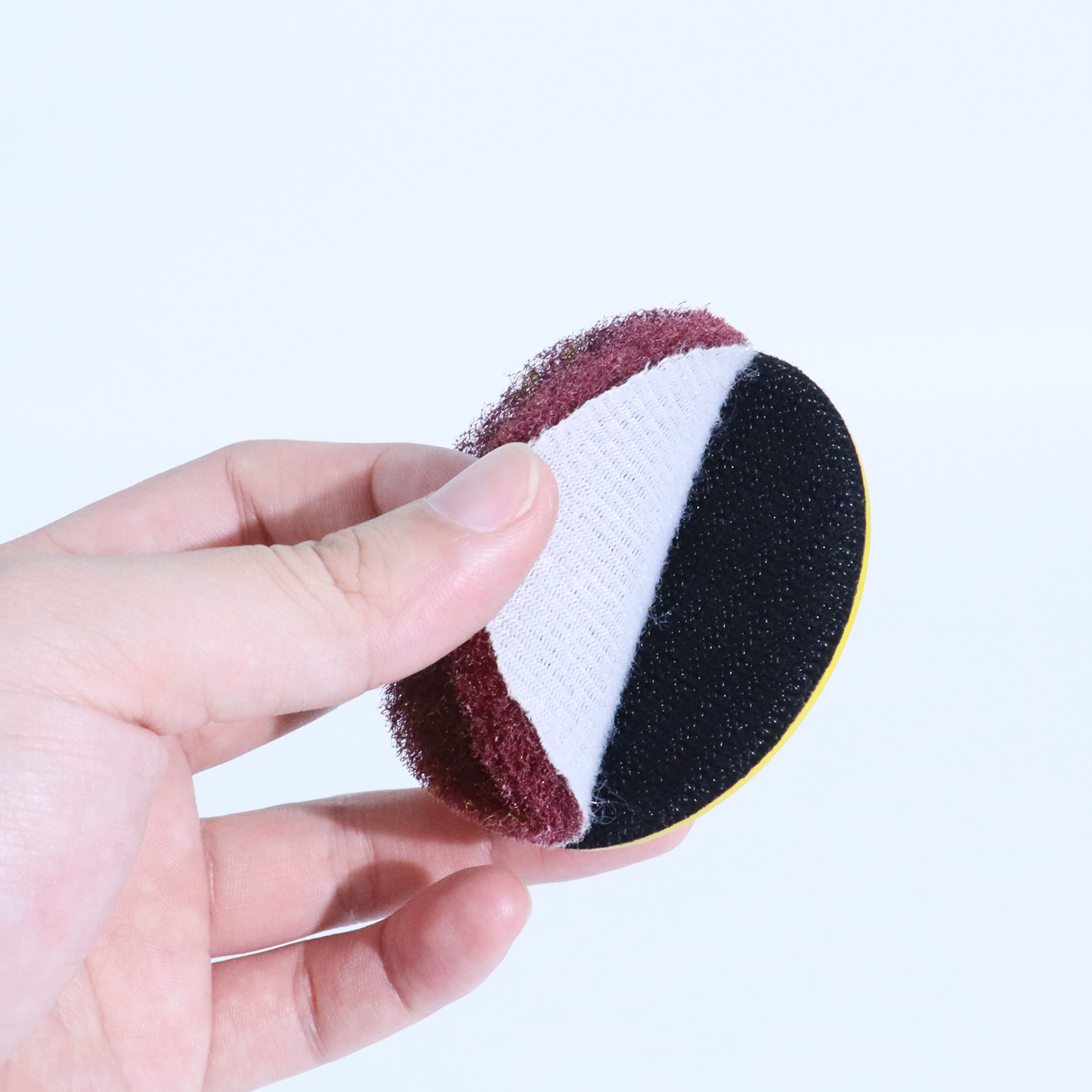

Optional Loop Backing

Connects converted discs to hook-face holders or backing pads.

Applications

Application Area Typical Applications Usage Guidance
01
Stainless Steel Finishing Blending and directional finish
  • Grain blending
  • Brushed-finish repair
  • Weld discoloration cleaning
  • Surface mark blending
  • Handrail and tube finishing
  • Panel and enclosure preparation
  • Kitchen equipment finishing
For a directional brushed finish, move the pad in one direction and control pressure, stroke length, overlap, and replacement interval.
02
Rust and Oxide Removal Cleaning and maintenance
  • Surface rust removal
  • Oxide-film removal
  • Storage-rust cleaning
  • Weld-area cleaning
  • Metal maintenance
  • Coating-residue removal
This pad is intended for surface rust and oxide removal. Scale, weld slag, weld stock, and corrosion pits require another abrasive process.
03
Coating Preparation Scuffing and adhesion preparation
  • Primer preparation
  • Paint scuffing
  • Coating adhesion preparation
  • Repair-area blending
  • Edge and recess cleaning
  • Intercoat surface preparation
Confirm that the selected pad grade produces the required texture without excessive coating removal.
04
Aluminum and Non-Ferrous Metal Cleaning and surface scuffing
  • Aluminum surface cleaning
  • Oxidation removal
  • Grain blending
  • Surface scuffing
  • Preparation before coating or bonding
Complete an application test to confirm the scratch pattern and control the risk of unwanted surface contamination.
05
Workshop and Maintenance Use Cleaning and light edge work
  • Equipment cleaning
  • Tool maintenance
  • Adhesive-residue removal
  • Mold cleaning
  • Surface mark removal
  • Deburring of edge burrs
Application testing is required before use on a finished, plated, anodized, or coated surface.

Performance Characteristics

01

Open-Web Construction

The fiber network leaves space for swarf, rust, paint residue, and cleaning liquid. This structure reduces the concentration of debris on the contact surface.

02

Conformability

The pad can be folded, rolled, or compressed for use on tubes, edges, grooves, corners, and contoured workpieces.

03

Surface Control

The fiber structure distributes contact over the workpiece and supports blending without the backing marks associated with abrasive paper.

04

Directional Grain Formation

The pad can create or restore a grain pattern on stainless steel and aluminum. The final pattern depends on pad grade, material, pressure, stroke direction, overlap, and use time.

05
FORMAT CONVERSION

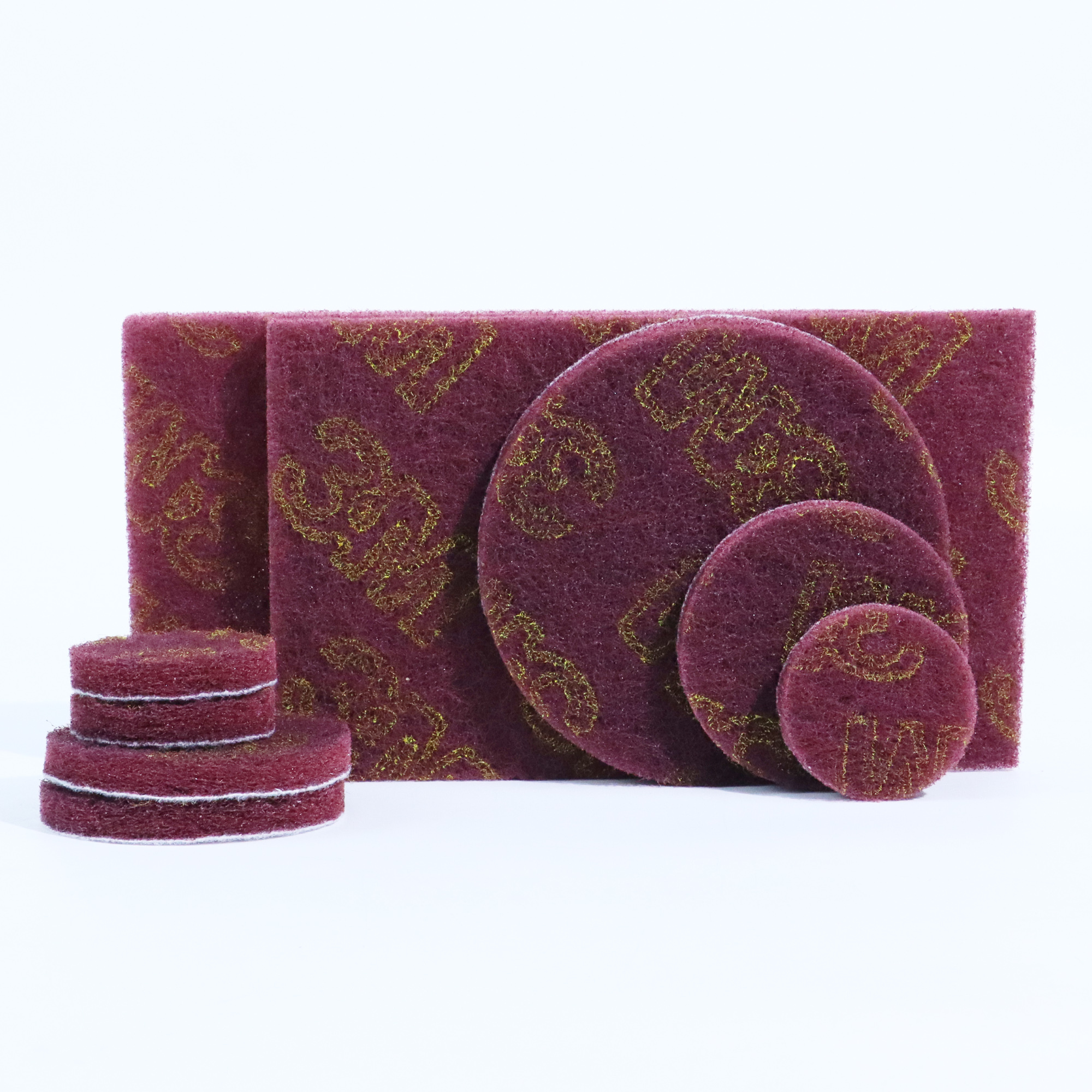

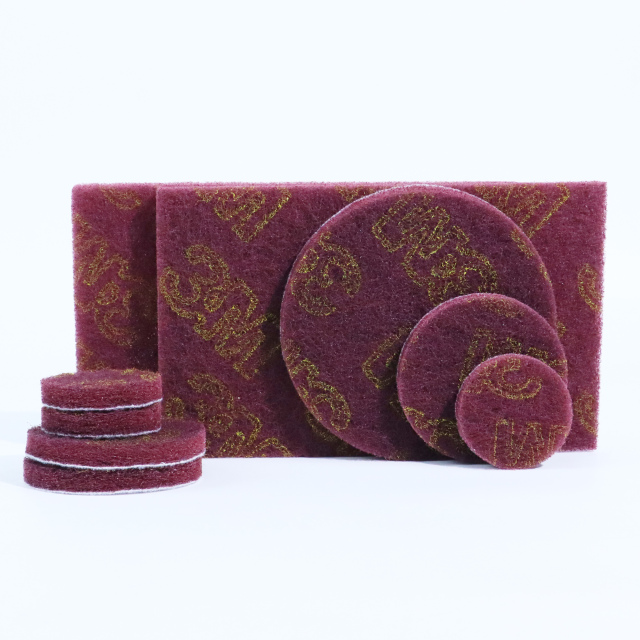

Available Converted Formats

The non-woven abrasive material can be converted according to the required manual or machine process.

01Hand Pads
02Strips
03Squares
04Round Discs
05Hook-and-Loop Discs

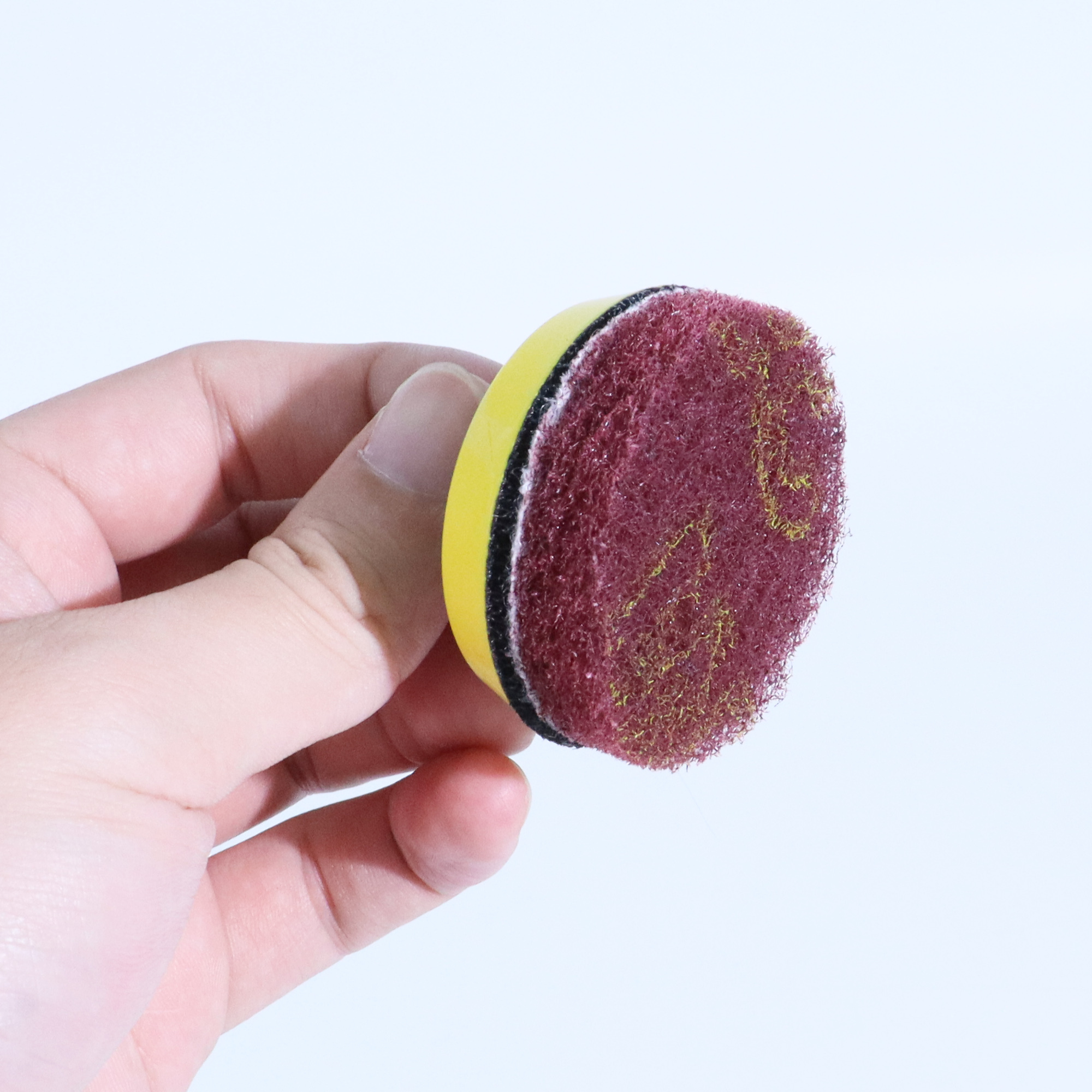

06Foam-Backed Pads
07Mounted Conditioning Pads
08Die-Cut Shapes

Manufacturing Control by AoZhong

AoZhong manufactures non-woven abrasive hand pads and converted surface conditioning products through the following process controls.

Production Stage Control Items Control Focus
01
Incoming Material Control Fiber, grain and resin
  • Fiber incoming inspection
  • Abrasive grain inspection
  • Resin batch control
Verifies the synthetic fiber, abrasive grain, and resin before web formation and abrasive application.
02
Web and Bonding Control Non-woven abrasive production
  • Fiber-web formation
  • Abrasive and resin application
  • Curing-process control
Controls the three-dimensional fiber structure, abrasive distribution, resin application, and curing process.
03
Physical Property Control Density, thickness and recovery
  • Density measurement
  • Thickness measurement
  • Compression and recovery check
Checks pad density, finished thickness, compression response, and recovery against the approved specification.
04
Cutting and Product Inspection Dimensions and surface condition
  • Cutting and die-cutting
  • Surface inspection
  • Abrasive shedding check
  • Fiber shedding check
  • Dimension inspection
  • Converted backing inspection
Verifies converted dimensions, pad appearance, abrasive and fiber shedding, and any specified backing construction.
05
Identification and Packaging Batch and shipment control
  • Printing and label inspection
  • Batch coding
  • Packaging inspection
  • Production sample retention
Supports product identification, batch traceability, packaging verification, and comparison with retained production samples.

Frequently Asked Questions

Information about AoZhong manufacturing, batch consistency, sample testing, converted formats and quotation requirements.

01 Is AoZhong a manufacturer of non-woven abrasive hand pads?

Yes. AoZhong controls fiber-web formation, abrasive application, resin curing, cutting, conversion, inspection, printing, and packaging. Buyers can request samples and order specifications before volume production.

02 How does AoZhong control batch consistency?

Each order is produced against an approved specification covering material, abrasive grain, color, density, thickness, dimensions, grade, printing, and packaging. Batch codes and retained samples support production-lot comparison.

03 Can we test the pad before placing a volume order?

Yes. Samples can be supplied for cut-rate, rust-removal, grain-blending, scratch-pattern, folding, shedding, and service-life tests. Testing should be completed on the buyer’s material and production process.

04 Can AoZhong manufacture discs and hook-and-loop versions?

Yes. The non-woven material can be converted into round discs, hook-and-loop discs, foam-backed pads, strips, sheets, and die-cut shapes. Diameter, backing, interface layer, and packaging must be confirmed before production.

05 What information is required for a quotation?

Provide the product grade, size, thickness, density or approved sample, quantity, converted format, backing type, printing, packaging, destination market, and target application. A workpiece sample or surface-finish reference can support product selection.
