6-Inch 800 Grit 8-Hole Diamond-Shape Sanding Disc

No.6IN-P800-8H-DSSD
6-Inch 800 Grit 8-Hole Diamond-Shape Sanding Disc6-inch P800 8-hole diamond-shaped sanding disc, featuring aluminum oxide abrasive, a hook-and-loop backing, and dust extraction holes. Suitable for primer sanding, pre-painting surface preparation, wood finishing, and more.
Product Name
Diamond-Shape Sanding Disc
Diameter
150 mm (6 Inch)
Grit
P800
Abrasive Type
Aluminum Oxide
Backing Material
Fabric
Hole Pattern
8 Holes
Surface Pattern
Diamond-Shape Pattern
Sanding Method
Dry Sanding
Color
Orange-Brown
  • 6-Inch 800 Grit 8-Hole Diamond-Shape Sanding Disc,6-Inch 800 Grit 8-Hole Diamond-Shape Sanding Disc
  • 6-Inch 800 Grit 8-Hole Diamond-Shape Sanding Disc,6-Inch 800 Grit 8-Hole Diamond-Shape Sanding Disc
  • 6-Inch 800 Grit 8-Hole Diamond-Shape Sanding Disc,6-Inch 800 Grit 8-Hole Diamond-Shape Sanding Disc
  • 6-Inch 800 Grit 8-Hole Diamond-Shape Sanding Disc,6-Inch 800 Grit 8-Hole Diamond-Shape Sanding Disc

Description

6 inch Diamond-Pattern Aluminum Oxide Sanding Disc 800 Grit 8-Hole

The 6 inch Diamond-Pattern Aluminum Oxide Sanding Disc 800 Grit 8-Hole is a hook-and-loop coated abrasive disc for primer sanding, paint preparation, blend-area sanding, wood coating refinement, plastic sanding, and composite surface preparation.

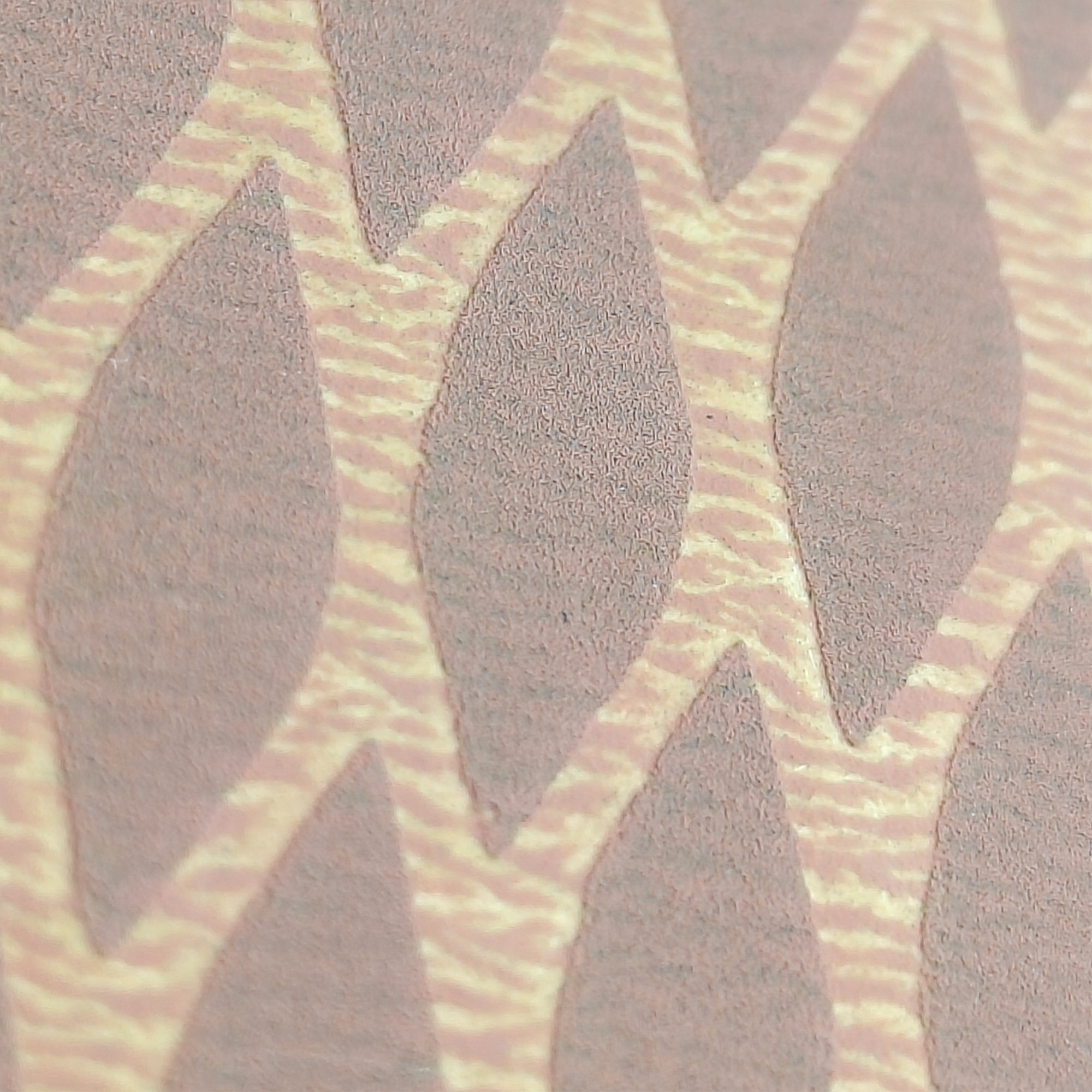

The P800 disc combines an aluminum oxide abrasive layer, resin bonding, cloth backing, hook-and-loop attachment, an 8-hole dust extraction layout, and a diamond-pattern surface. Channels between the patterned abrasive areas provide space for dust movement toward the extraction holes.

Aozhong manufactures sanding discs for importers, distributors, automotive refinishing suppliers, woodworking suppliers, industrial users, and private-label programs. Production control covers abrasive grain, resin coating, curing, backing lamination, surface pattern, disc cutting, hole punching, attachment, inspection, printing, and packaging.

Product Features

P800 aluminum oxide sanding disc with a diamond-pattern abrasive face, eight-hole dust extraction and cloth backing.

ABRASIVE

P800 Aluminum Oxide

Designed for surface refinement and fine scratch preparation.

COATING PATTERN

Diamond Abrasive Pattern

Patterned coating creates channels across the abrasive face.

DUST EXTRACTION

Eight Extraction Holes

For use with a compatible eight-hole vacuum backing pad.

BACKING

Cloth Backing

Supports the disc and maintains contact with the work surface.

ATTACHMENT

Hook-and-Loop System

Supports convenient disc installation and grit changes.

AOZHONG P800 150 mm · 8 HOLES
150 mm P800 8 Holes
DISC SIZE

150 mm Format

For compatible random orbital sanding systems.

BONDING

Resin Bonding

Supports abrasive grain retention during sanding.

IDENTIFICATION

Orange-Brown Abrasive Face

Provides visual identification of the abrasive surface.

SANDING METHOD

Dry-Sanding Configuration

Designed for compatible dry-sanding applications.

CUSTOM SUPPLY

OEM Options

Grit, pattern, holes, print and packaging can be specified.

Applications

Application guidance for P800 sanding discs used during fine automotive refinishing and paint-preparation processes.

Application Area Suitable Processes Operating Guidance
Automotive Refinishing Fine sanding and paint preparation
  • Primer refinement
  • P600 scratch refinement
  • Paint preparation
  • Blend-area sanding
  • Spot-repair preparation
  • Repair-edge transition
  • Existing paint-surface preparation
  • Preparation before the next grit
FINE-SANDING STAGE

P800 is used during fine sanding rather than body filler shaping or initial material removal.

Final grit selection should follow the primer, paint or coating technical data sheet.
TYPICAL GRIT POSITION

P800 supports scratch refinement before finer preparation stages.

P400 P600 P800 Next Grit

Aozhong Manufacturing Advantages

Aozhong manufactures coated abrasive discs for B2B distribution, industrial supply, automotive repair channels and private-label programs.

Production Stage Control Items Control Focus
Raw Material Control Incoming material verification
  • Aluminum oxide grain specification
  • Cloth-backing inspection
  • Resin batch verification
  • Loop-material inspection
  • Lamination-material inspection
  • Incoming-material records
MATERIAL INPUT

Verifies abrasive grain, cloth backing, resin, loop material, lamination materials and incoming batch records.

Coating and Pattern Control Abrasive coating and channel layout
  • Coating-weight monitoring
  • Abrasive-distribution inspection
  • Diamond-pattern dimensions
  • Pattern-repeat position
  • Channel-width inspection
  • Resin-application control
  • Curing-temperature records
  • Curing-time records
PATTERN CONTROL

Checks coating weight, abrasive distribution, diamond-pattern dimensions, channel width, resin application and curing data.

Lamination and Conversion Disc construction and punching
  • Cloth-to-loop lamination
  • 150 mm disc cutting
  • Diameter inspection
  • Roundness inspection
  • Edge inspection
  • Eight-hole punching
  • Hole-diameter inspection
  • Hole-position inspection
  • Layer-bond inspection
DISC CONVERSION

Checks lamination, disc diameter, roundness, edge quality, eight-hole layout and bonding between product layers.

Finished-Product Inspection Dimension and performance checks
  • P800 grit verification
  • Abrasive-surface inspection
  • Pattern-coverage inspection
  • Disc-diameter measurement
  • Hole-layout comparison
  • Hook-and-loop attachment check
  • Cutting test
  • Scratch-pattern review
  • Backing-pad fit check
PRODUCT INSPECTION

Verifies P800 grit, pattern coverage, finished dimensions, attachment, sanding results and backing-pad compatibility.

Packaging Control Identification and shipment
  • Product-number verification
  • P800 marking
  • Backing print
  • Batch code
  • Quantity per box
  • Barcode
  • Carton marking
  • Export packaging
  • Retained samples
PACKAGING OUTPUT

Checks product identity, grit marking, packing quantity, batch code, barcode, cartons and retained production samples.

MANUFACTURING CONTROL FLOW

Controls can be applied from incoming materials through final packaging.

01 Materials 02 Pattern 03 Conversion 04 Inspection 05 Packaging

FAQs

Answers about Aozhong manufacturing, diamond-pattern terminology, samples, batch consistency and private-label packaging.

Is Aozhong a sanding disc manufacturer?

Yes. Aozhong manufactures coated abrasive discs for importers, distributors, automotive repair suppliers, woodworking suppliers, industrial users and private-label programs. Production covers coating, curing, pattern forming, lamination, punching, inspection, printing and packaging.

Does “diamond-pattern” mean the disc contains diamond abrasive?

No. The term describes the shape of the patterned abrasive coating. This product uses aluminum oxide grain. Product specifications and purchase orders should state “diamond-pattern aluminum oxide sanding disc” to avoid confusion.

Can samples be supplied before an order?

Yes. Samples can be supplied for scratch-pattern review, primer and paint sanding tests, backing-pad fit checks, hole alignment, attachment testing and packaging approval. Production specifications are confirmed after sample evaluation.

How does Aozhong control batch consistency?

Abrasive grain, coating weight, resin application, diamond-pattern dimensions, curing conditions, disc diameter, hole position, backing attachment, P800 marking and packaging can be checked by production batch. Batch identification and retained samples can be included in the inspection plan.

Can Aozhong manufacture private-label packaging?

Yes. Options include backing print, labels, barcodes, pack quantities, inner boxes, export cartons and carton markings. Pattern dimensions, hole layout, tolerances, artwork and inspection criteria are confirmed before production.
