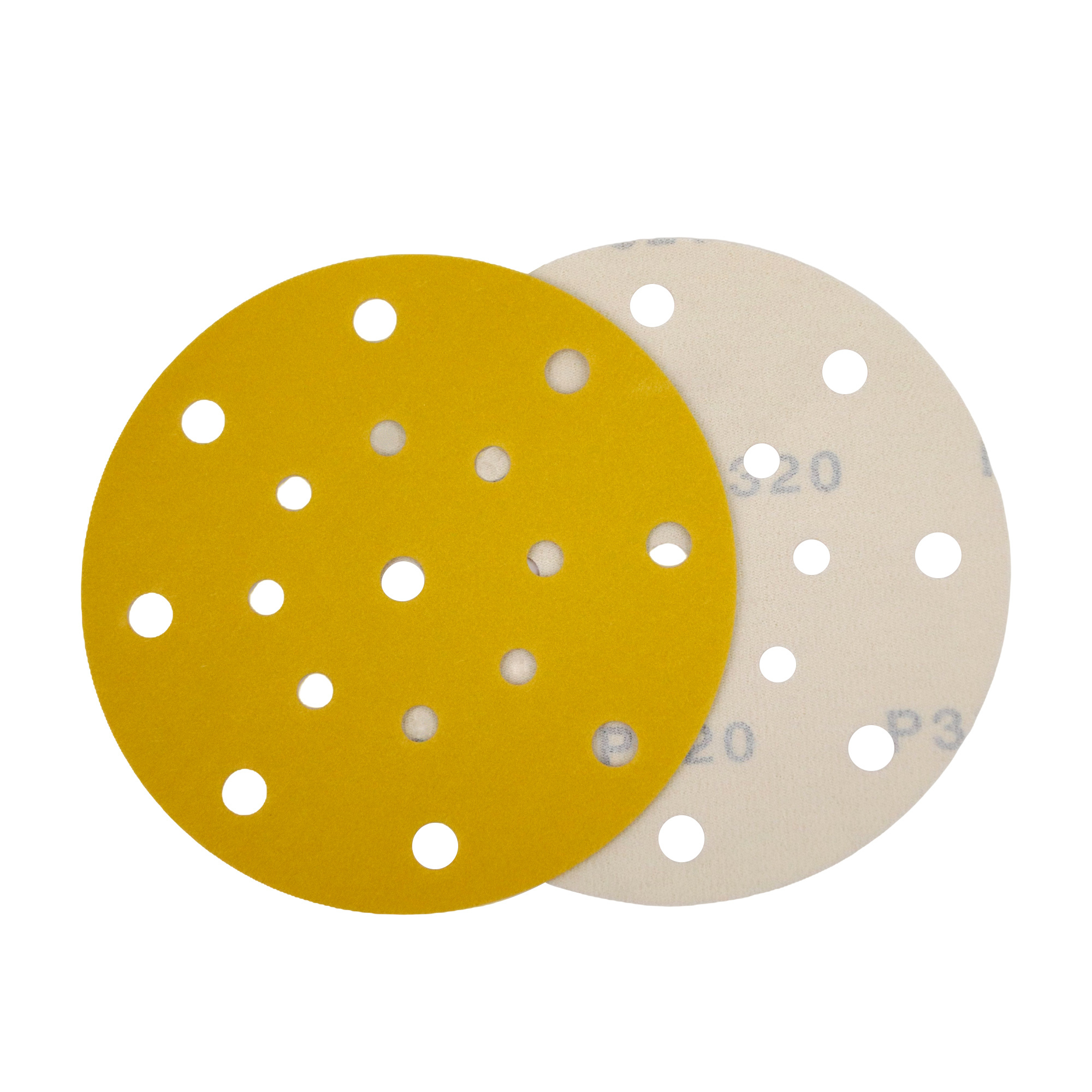

6 Inch (150mm) P320 Gold Sanding Disc for Automotive Refinishing 17 Hole

No.AOP-150-P320-17H-HL-G
The 6-inch P320 17-hole Gold sanding disc is specifically designed for primer sanding, surface finishing, coating pretreatment, wood surface preparation, and composite material processing.
Product Name
Aozhong Gold Sanding Disc
Diameter
150mm (6 Inch)
Grit
P320
Abrasive Material
Aluminum Oxide
Backing Material
Treated Paper
Attachment Type
Hook & Loop
Bonding system
Resin on resin
Hole pattern
17 holes
Sanding method
Machine sanding
Applications
Primer, paint, wood, metal coating and composite sanding
Custom options
Grit, hole pattern, print, label, package quantity and carton
  • 6 Inch (150mm) P320 Gold Sanding Disc for Automotive Refinishing 17 Hole,6 Inch (150mm) P320 Gold Sanding Disc for Automotive Refinishing

Description

6 Inch (150mm) P320 Gold Sanding Disc for Automotive Refinishing 17 Hole

The 6 Inch (150mm) P320 Gold Sanding Disc for Automotive Refinishing 17 Hole uses aluminum oxide abrasive, resin-on-resin bonding, treated paper backing, hook and loop attachment, and a 17-hole dust extraction pattern.

The P320 sanding disc is used for automotive primer sanding, P240 scratch refinement, paint-edge blending, coating preparation, wood finishing, and composite surface preparation. Its 150mm format fits random orbital sanders and DA sanders equipped with a matching hook-face backing pad and 17-hole extraction layout.

Aozhong manufactures coated abrasive discs for distributors, importers, automotive refinishing suppliers, industrial supply companies, and private-label programs. Production control covers raw material inspection, abrasive coating, resin curing, backing lamination, disc conversion, hole punching, grit identification, dimensional inspection, and packaging.

Product Features

P320 aluminum oxide sanding disc for primer leveling, scratch refinement and dust-extracted random orbital sanding.

GRIT

P320 Surface Refinement

Supports primer leveling and scratch refinement.

ABRASIVE

Aluminum Oxide Grain

Works on automotive coatings, wood, general metal surfaces and composites.

BACKING

Treated Paper Backing

Supports the disc during random orbital sanding.

BONDING

Resin-on-Resin Bonding

Retains the abrasive grain during use.

AOZHONG P320 150 mm · 17 HOLES
150 mm P320 17 Holes
ATTACHMENT

Hook and Loop Backing

Supports disc replacement between sanding stages.

EXTRACTION

17-Hole Pattern

Transfers dust to a compatible extraction system.

DISC SIZE

150 mm Format

Fits workshop and production sanding processes.

CUSTOM SUPPLY

OEM Options

Hole pattern, backing print, labels, pack quantity and cartons can be specified.

Applications

Application guidance for P320 sanding discs used in automotive refinishing, woodworking and coated metal preparation.

Application Area Suitable Processes Operating Guidance
Automotive Refinishing Intermediate repair preparation
  • Primer surfacer sanding
  • P240 scratch refinement
  • Body filler surface refinement
  • Putty-edge transition
  • Paint-edge blending
  • Existing coating preparation
  • Repair-panel sanding
  • Surface preparation before the next grit
  • Intermediate sanding before refinishing
INTERMEDIATE GRIT

P320 is used for scratch transition, primer surfacer sanding and intermediate refinishing preparation.

The final grit before basecoat or topcoat must follow the coating supplier’s process specification.
Woodworking Wood and finishing-system preparation
  • Solid wood finishing
  • MDF surface preparation
  • Furniture component sanding
  • Cabinet and door sanding
  • Wood primer sanding
  • Sealer sanding
  • Veneer surface preparation
  • Preparation before coating
SURFACE CONTROL

Veneer and panel edges can be more sensitive to concentrated sanding pressure.

Use controlled pressure to reduce the risk of sanding through the surface layer.
Metal and Coated Surfaces Primer and coating refinement
  • Metal primer sanding
  • Paint and coating refinement
  • Scratch transition
  • Preparation before repainting
  • Aluminum panel preparation
  • Carbon-steel coating preparation
  • Light weld-area blending
APPLICATION LIMIT

The disc is intended for surface preparation, coating refinement and light blending.

Not intended for:
  • Weld removal
  • Heavy rust removal
  • Scale removal
  • Cutting operations
  • Major burr removal
TYPICAL GRIT POSITION

P320 supports the transition from coarse preparation to finer primer and coating refinement.

P180 P240 P320 Next Grit

Aozhong Manufacturing and Supply

Aozhong manufactures sanding discs for B2B distribution, industrial supply, automotive refinishing channels and private-label programs.

Control Stage Inspection Items Control Focus
Material Control Incoming material verification
  • Aluminum oxide grain inspection
  • Treated paper verification
  • Resin batch verification
  • Hook and loop material inspection
  • Incoming-material batch records
MATERIAL INPUT

Verifies abrasive grain, treated paper, resin, hook-and-loop material and incoming batch information before coating begins.

Coating and Curing Control Abrasive production records
  • Coating-weight monitoring
  • Abrasive distribution inspection
  • Resin application control
  • Curing-temperature records
  • Curing-time records
COATING PROCESS

Records coating weight, abrasive distribution, resin application, curing temperature and curing time.

Disc Conversion Control Dimensions, holes and attachment
  • 150 mm diameter inspection
  • Disc-edge inspection
  • Hole-count verification
  • Hole-diameter inspection
  • Hole-position inspection
  • Backing lamination inspection
  • Hook and loop attachment inspection
DISC CONVERSION

Checks finished diameter, disc edge, extraction-hole layout, backing lamination and hook-and-loop attachment.

Batch and Packaging Control Identification and shipment
  • P320 grit verification
  • Product-number verification
  • Backing-print inspection
  • Batch identification
  • Retained production samples
  • Quantity-per-box checks
  • Label and barcode inspection
  • Export-carton inspection
PACKAGING OUTPUT

Verifies product identity, grit, print, batch code, packing quantity, labels, barcodes, cartons and retained samples.

OEM and Private-Label Options

Aozhong can supply aluminum oxide sanding discs according to buyer specifications.

Customization Category Available Options Confirmation Requirements
Product Specification Disc and abrasive configuration
  • Disc diameter
  • Grit range
  • Abrasive specification
  • Paper-backing specification
TECHNICAL SPECIFICATION

Confirm disc dimensions, grit range, abrasive construction, paper backing and applicable tolerances.

Disc Construction Hole layout and attachment
  • Hole pattern
  • Hook and loop backing
  • Abrasive-face color
17-HOLE COMPATIBILITY

For a 17-hole order, provide a 1:1 hole drawing, backing-pad drawing or physical pad sample.

Brand Identification Print, label and barcode
  • Backing print
  • Product label
  • Barcode
ARTWORK APPROVAL

Confirm print artwork, product information, label dimensions, barcode data and approved color references.

Packaging and Export Pack configuration and shipment
  • Quantity per box
  • Mixed-grit packaging
  • Export-carton markings
PACKAGING APPROVAL

Confirm pack quantity, grit combination, carton markings and destination requirements before production.

Frequently Asked Questions

Information about Aozhong manufacturing, 17-hole pattern control, product samples, batch consistency and private-label packaging.

Is Aozhong a sanding disc manufacturer?

Yes. Aozhong manufactures coated abrasive products for distributors, importers, industrial suppliers, automotive refinishing channels, and private-label programs. Production covers coating, curing, laminating, punching, converting, inspection, and packaging.

How is the 17-hole pattern controlled?

Hole count, hole diameter, pitch circle, center-hole position, and punching position can be inspected against an approved drawing. Buyers can provide a backing-pad drawing or physical sample for compatibility checking.

Can samples be supplied before an order?

Yes. Samples can be supplied for sanding tests, scratch-pattern review, backing-pad fit checks, hole-alignment checks, and packaging approval. Production specifications are confirmed after sample evaluation.

How does Aozhong control batch consistency?

Incoming materials, coating settings, curing conditions, disc diameter, hole positions, attachment layers, grit identification, and packaging are checked by production batch. Batch numbers and retained samples can be included in the quality plan.

Can Aozhong manufacture private-label packaging?

Yes. Options include backing print, labels, barcodes, boxes, pack quantities, and export cartons. Artwork, dimensions, tolerances, inspection criteria, and packaging specifications are confirmed before production.
