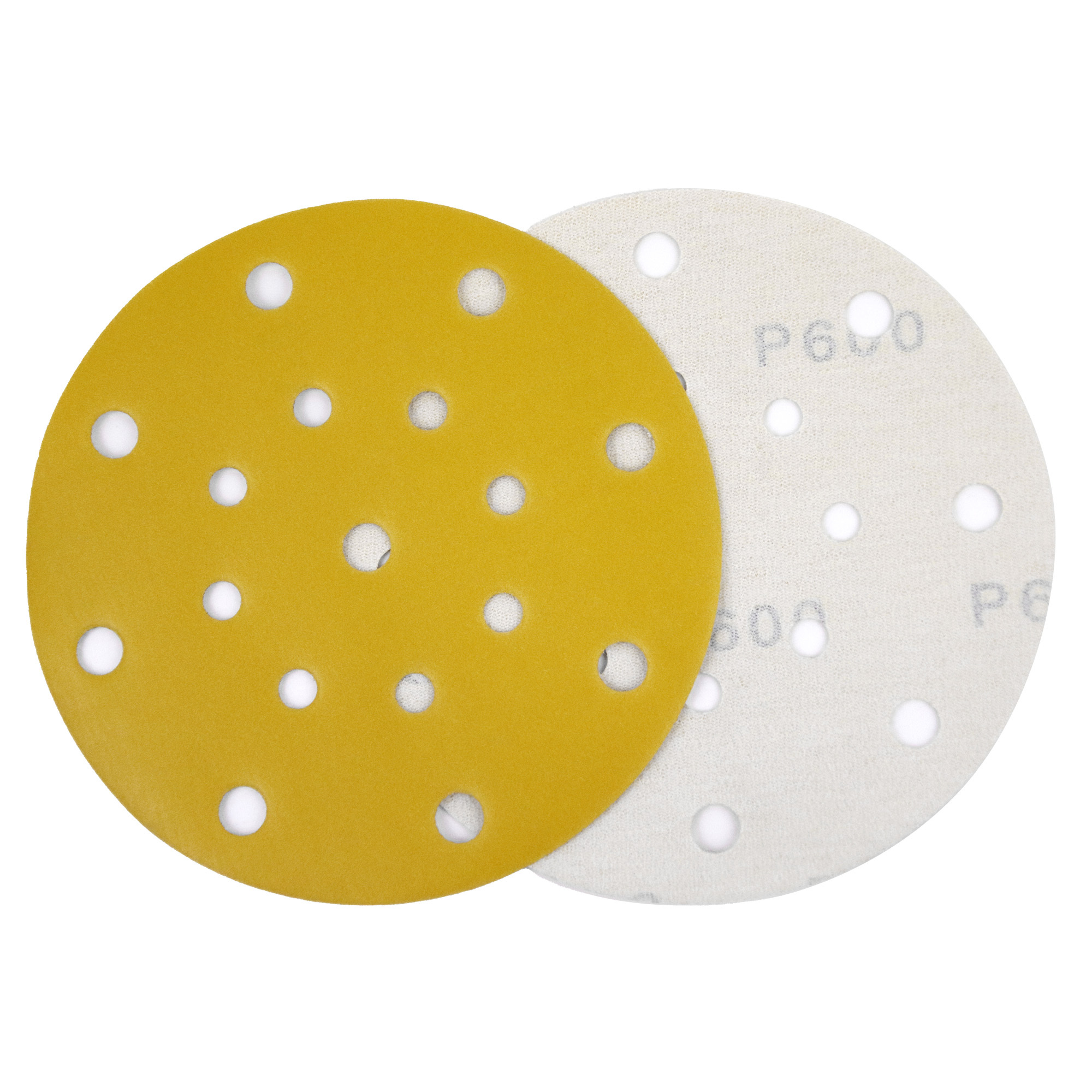

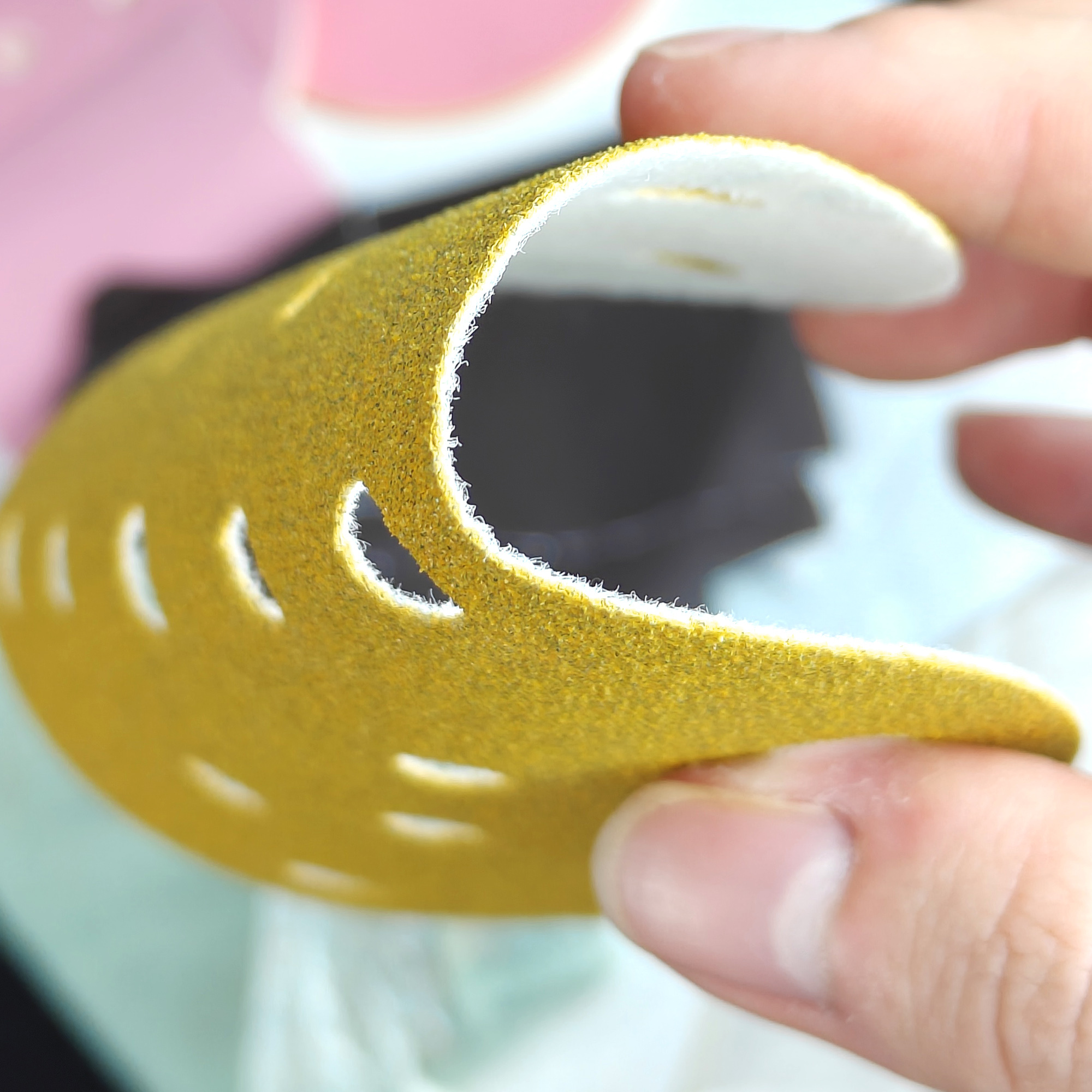

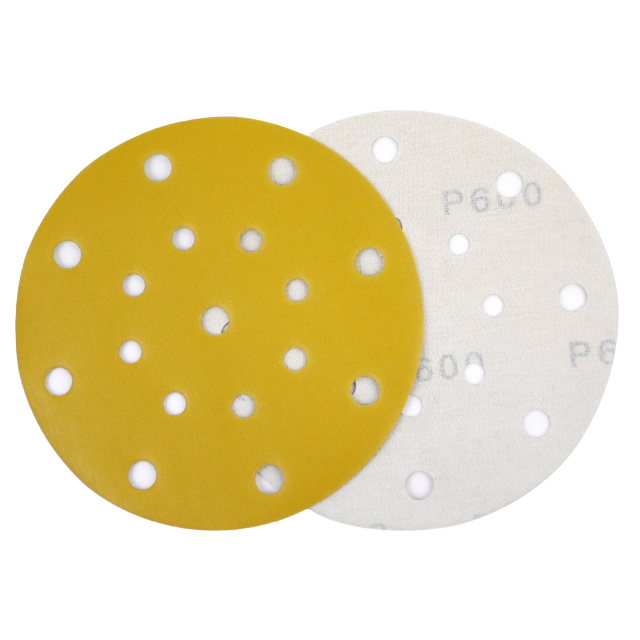

6in. (150mm) AO Gold Sanding Disc 17 Hole 600 Grit

No.6IN-AO-GSD-17H-P600
Aozhong 6-inch P600 17-hole yellow sanding disc, featuring aluminum oxide abrasive and a hook-and-loop fastening system, is suitable for automotive painting, woodworking, composite material processing, and industrial surface finishing.
Product Name
Aozhong Gold Sanding Disc
Diameter
150mm (6 Inch)
Grit
P600
Abrasive Material
Aluminum Oxide
Backing Material
Paper
Attachment
Hook and loop
Hole pattern
17 holes
Abrasive-face color
Gold / yellow
Sanding method
Machine sanding
Operating mode
Dry sanding
Applications
Primer, paint, wood coatings, plastic and composites
Supply options
Bulk, OEM, ODM and private label
Custom options
Grit, hole pattern, backing print, label and packaging
  • 6in. (150mm) AO Gold Sanding Disc 17 Hole 600 Grit,6in. (150mm) AO Gold Sanding Disc 17 Hole 600 Grit
  • 6in. (150mm) AO Gold Sanding Disc 17 Hole 600 Grit,6in. (150mm) AO Gold Sanding Disc 17 Hole 600 Grit

Description

Aozhong 6-Inch P600 17-Hole Gold Sanding Disc

The 6in. (150mm) AO Gold Sanding Disc 17 Hole 600 Grit combines P600 aluminum oxide grain, resin-on-resin bonding, paper backing, and a hook-and-loop attachment layer.

The disc is used for primer sanding, P400 scratch refinement, paint preparation, blend-area sanding, wood coating refinement, plastic sanding, and composite surface preparation. Its 17-hole layout transfers sanding dust into a matching backing pad and vacuum system.

Aozhong manufactures coated abrasive discs for importers, distributors, automotive refinishing suppliers, woodworking suppliers, industrial users, and private-label programs. Production control covers abrasive coating, curing, lamination, disc conversion, hole punching, inspection, printing, labeling, and packaging.

Product Features

P600 aluminum oxide sanding disc with paper backing, seventeen-hole dust extraction and hook-and-loop attachment.

ABRASIVE

P600 Aluminum Oxide

Designed for surface refinement and fine scratch preparation.

BONDING

Resin-on-Resin Bonding

Supports abrasive grain retention during sanding.

BACKING

Paper Backing

Provides support during random orbital sanding.

ATTACHMENT

Hook-and-Loop System

Supports convenient disc installation and replacement.

EXTRACTION

Seventeen Extraction Holes

For use with a compatible seventeen-hole backing pad.

AOZHONG P600 150 mm · 17 HOLES
150 mm P600 17 Holes
DISC SIZE

150 mm Format

For compatible random orbital sanding systems.

IDENTIFICATION

Gold Abrasive Face

Provides visual identification of the abrasive surface.

SANDING METHOD

Dry-Sanding Configuration

Designed for compatible dry-sanding processes.

APPLICATIONS

Multi-Material Coverage

For primer, paint, wood coatings and composite surfaces.

CUSTOM SUPPLY

OEM Options

Grit, holes, print, label and packaging can be specified.

Applications

Application guidance for P600 aluminum oxide sanding discs used in automotive, woodworking, industrial coating and composite processes.

Application Area Suitable Processes Operating Guidance
Automotive Refinishing Primer and paint preparation
  • Primer-surfacer sanding
  • P400 scratch refinement
  • Paint preparation
  • Blend-area preparation
  • Repair-edge transition
  • Spot-repair preparation
  • Existing paint-surface preparation
  • Preparation before P800
REFINEMENT STAGE

P600 is used during primer refinement and paint preparation.

Final use before basecoat depends on the coating system and repair procedure.
Primer and Paint Preparation Coating and repair-zone refinement
  • Primer refinement
  • Existing coating preparation
  • P400 scratch reduction
  • Repair-zone sanding
  • Surface preparation before repainting
  • Preparation before P800 or another grit
FINAL GRIT SELECTION

P600 supports scratch reduction and coating preparation within a multi-step sanding sequence.

Follow the primer, paint or coating technical data sheet when selecting the final grit.
Woodworking Sealer and coating refinement
  • Wood sealer sanding
  • Primer sanding
  • Furniture-coating refinement
  • Cabinet-coating sanding
  • MDF coating preparation
  • Surface preparation between coating layers
  • Finishing-system preparation
APPLICATION LIMIT

P600 is intended for fine coating and finishing-system preparation.

Not intended as the starting grit for:
  • Raw wood saw marks
  • Machining marks
  • Raised fibers
  • Surface-level differences
Industrial Coating Preparation Coated equipment and metal surfaces
  • Coating preparation
  • Equipment-paint refinement
  • Powder-coating repair preparation
  • Coated metal sanding
  • Surface refinement before painting
  • P400 scratch transition
LIGHT REFINEMENT

The disc is intended for coating preparation and fine scratch transition.

Not intended for:
  • Heavy coating removal
  • Bare-metal stock removal
Plastic and Composite Materials Tested preparation applications
  • Plastic component preparation
  • Fiberglass parts
  • Carbon-fiber components
  • Epoxy surfaces
  • Gelcoat
  • Composite panels
  • Preparation before coating or bonding
SANDING TEST REQUIRED

Plastic and resin-based materials can soften when sanding generates excessive heat.

Use controlled pressure, keep the sander moving and confirm suitability through a sanding test.
TYPICAL GRIT POSITION

P600 supports fine scratch transition before P800 or another coating-system grit.

P320 P400 P600 P800

Aozhong Manufacturing Advantages

Aozhong manufactures coated abrasive products for B2B distribution, automotive repair channels, woodworking suppliers, industrial users and private-label programs.

Production Stage Control Items Control Focus
Raw Material Control Incoming material verification
  • Aluminum oxide grain specification
  • Paper-backing inspection
  • Resin batch verification
  • Hook-and-loop material inspection
  • Lamination-material inspection
  • Incoming-material records
MATERIAL INPUT

Verifies abrasive grain, paper backing, resin, hook-and-loop material, lamination materials and incoming batch records.

Coating and Curing Control Abrasive production records
  • Coating-weight monitoring
  • Abrasive-distribution inspection
  • Resin-application control
  • Oven-temperature records
  • Curing-time records
  • Production-batch identification
COATING PROCESS

Records coating weight, abrasive distribution, resin application, oven temperature, curing time and production batch identity.

Lamination and Disc Conversion Disc construction and punching
  • Paper-to-loop lamination
  • 150 mm disc cutting
  • Diameter inspection
  • Roundness inspection
  • Edge inspection
  • Seventeen-hole punching
  • Hole-count verification
  • Hole-diameter inspection
  • Hole-position inspection
  • Layer-bond inspection
DISC CONVERSION

Checks lamination, finished diameter, roundness, edge quality, seventeen-hole layout and bonding between product layers.

Finished-Product Inspection Dimension and performance checks
  • P600 grit verification
  • Abrasive-surface inspection
  • Disc-diameter measurement
  • Hole-layout comparison
  • Hook-and-loop attachment check
  • Cutting test
  • Scratch-pattern review
  • Backing-pad fit check
PRODUCT INSPECTION

Verifies P600 grit, abrasive surface, finished dimensions, hole layout, attachment, sanding results and backing-pad fit.

Packaging Control Identification and shipment
  • Product-number verification
  • P600 marking
  • Backing print
  • Batch code
  • Quantity per box
  • Barcode
  • Carton marking
  • Export packaging
  • Retained samples
PACKAGING OUTPUT

Checks product identity, grit marking, packing quantity, batch code, barcode, cartons and retained production samples.

MANUFACTURING CONTROL FLOW

Controls can be applied from incoming materials through final packaging.

01 Materials 02 Coating 03 Conversion 04 Inspection 05 Packaging

OEM and Private-Label Supply

Aozhong supports bulk supply, OEM, ODM and private-label sanding-disc programs.

Customization Category Available Options Confirmation Requirements
Product Specification Disc and abrasive configuration
  • Disc diameter
  • Grit
  • Abrasive grain
  • Paper-backing specification
TECHNICAL SPECIFICATION

Confirm the diameter, grit, abrasive grain, paper-backing construction and applicable dimensional tolerances.

Disc Construction Extraction and attachment system
  • Hole pattern
  • Hook-and-loop attachment
  • Abrasive-face color
COMPATIBILITY CHECK

Confirm the approved hole drawing, backing-pad compatibility, attachment material and abrasive-face color.

Brand Identification Print, label and barcode
  • Backing print
  • Product label
  • Barcode
ARTWORK APPROVAL

Confirm print artwork, product information, label dimensions, barcode data and approved color references.

Packaging and Export Retail and shipment packaging
  • Quantity per box
  • Inner box
  • Export carton
  • Carton marking
PACKAGING APPROVAL

Confirm packing quantity, box construction, export-carton requirements, carton markings and destination information.

FAQs

Answers about Aozhong manufacturing, 17-hole pattern control, samples, batch consistency and private-label packaging.

Is Aozhong a sanding disc manufacturer?

Yes. Aozhong manufactures coated abrasive discs for importers, distributors, automotive repair suppliers, woodworking suppliers, industrial users and private-label programs. Production covers coating, curing, lamination, punching, inspection, printing and packaging.

How does Aozhong control the 17-hole pattern?

Hole count, hole diameter, pitch circle, center position and punching tolerance can be inspected against an approved drawing. Buyers can provide a backing-pad drawing or physical pad sample for compatibility checks.

Can samples be supplied before an order?

Yes. Samples can be supplied for scratch-pattern review, primer and paint sanding tests, backing-pad fit checks, hole alignment, attachment testing and packaging approval. Production specifications are confirmed after sample evaluation.

How does Aozhong control batch consistency?

Incoming materials, coating settings, curing conditions, disc dimensions, hole positions, attachment layers, P600 markings, labels and packaging can be checked by production batch. Batch identification and retained samples can be included in the inspection plan.

Can Aozhong manufacture private-label packaging?

Yes. Options include backing print, labels, barcodes, pack quantities, inner boxes, export cartons and carton markings. Artwork, specifications, tolerances and inspection criteria are confirmed before production.
