Aluminum Oxide Grain
For filler, primer, paint, wood, metal and composite sanding.
Aozhong 6-inch 49-hole green polyester film sanding disc (P120) is specifically designed for automotive refinishing, primer sanding, putty sanding, wood finishing, composite material sanding, and pre-paint surface preparation.

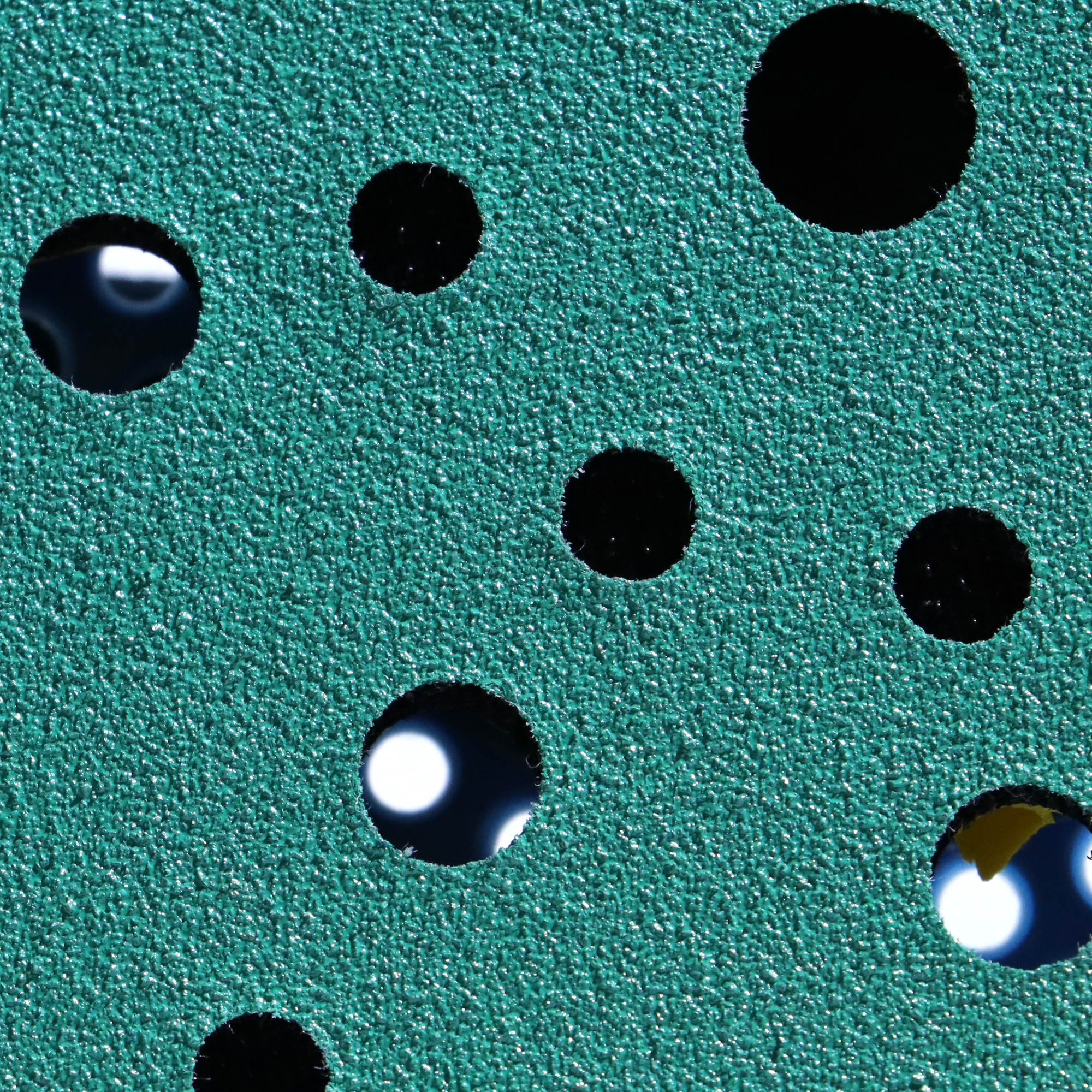

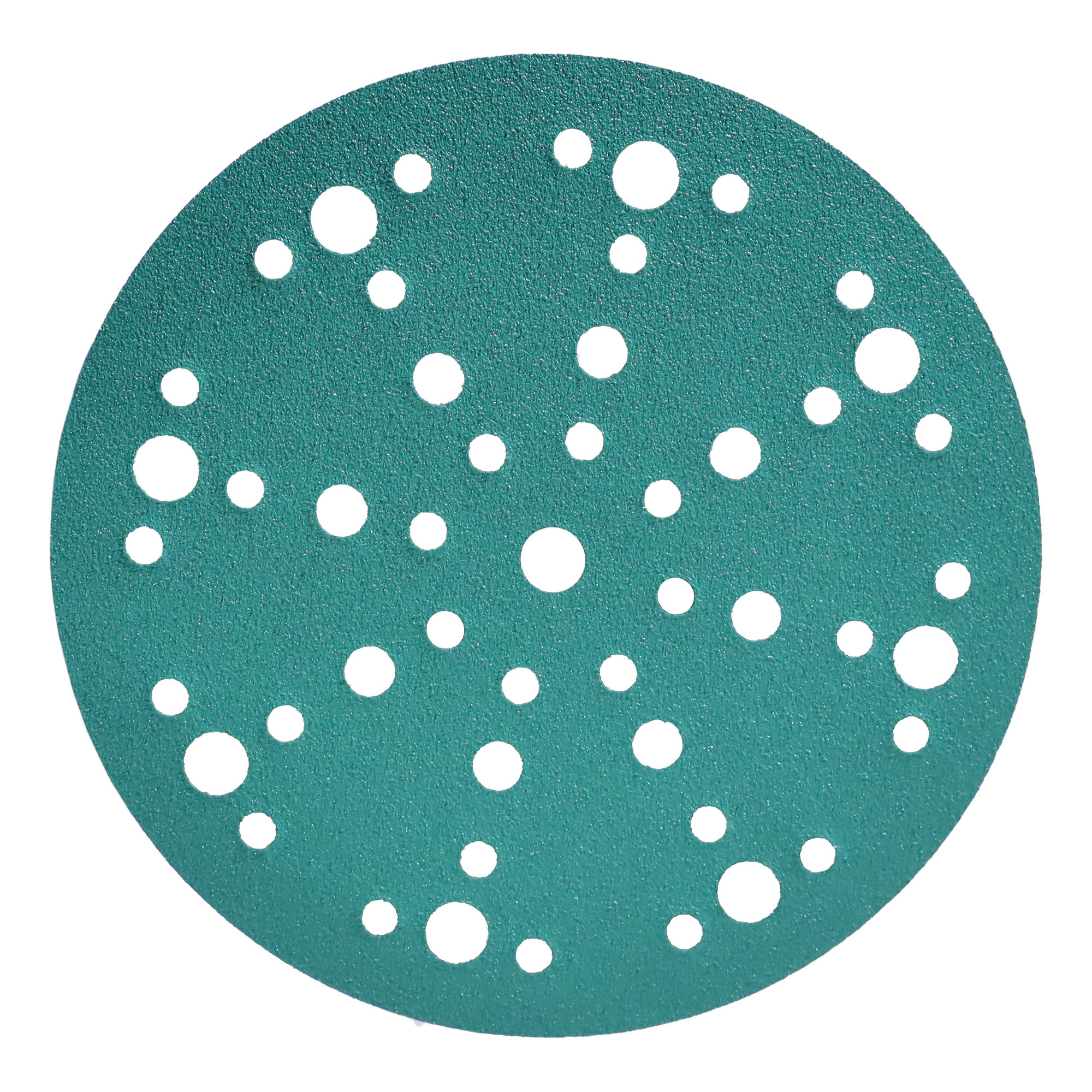

This product features a 150 mm sanding disc, P120 grit, polyester film backing, hook-and-loop fastening, and a 49-hole dust collection design.
Specifically developed for users who require a balance of hole alignment, disc change speed, edge wear resistance, dust collection efficiency, and sanding mark control. Compared to paper-backed sanding discs, the polyester film backing helps the disc maintain its shape during mechanical sanding and ensures even distribution of sanding pressure on both flat and curved surfaces.
The P120 grit size follows the P-grade abrasive system used for coated abrasives. The ISO 6344-2:2021 standard covers the P12 to P220 macro-grit range for coated abrasive products, including the grit distribution of aluminum oxide and silicon carbide.
P120 aluminum oxide film sanding disc for controlled surface leveling, scratch refinement and multi-hole dust extraction.
For filler, primer, paint, wood, metal and composite sanding.
Supports surface leveling and scratch refinement.
Provides support and dimensional control during sanding.
Supports the disc around its edge and punched holes.
Supports convenient disc installation and grit changes.
Designed for use with a matching dust-extraction pad.

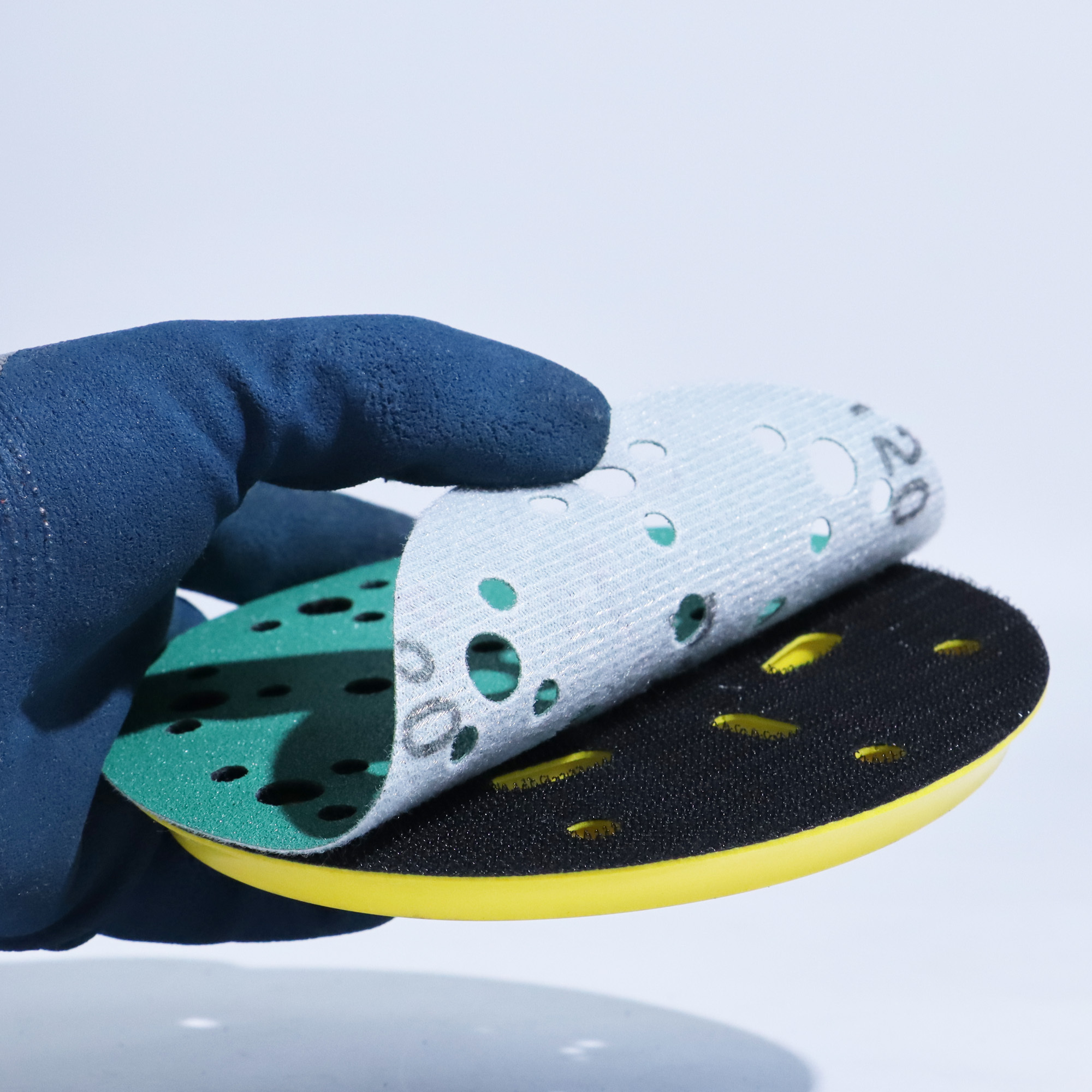

Connects with a compatible multi-channel backing pad.
For compatible random orbital sanding systems.
Supports abrasive grain retention during sanding.
For distributors and private-label supply programs.
Application guidance for P120 film sanding discs used in automotive, wood, MDF, metal and coating-preparation processes.
| Application Area | Suitable Processes | Operating Guidance |
|---|---|---|
|
Automotive Refinishing Body repair and paint preparation
|
|
INTERMEDIATE GRIT
P120 is generally an intermediate sanding grit. It is not normally the final sanding step before basecoat or topcoat. Subsequent grit selection should follow the coating technical data sheet. |
|
Wood and MDF Sanding Panel leveling and surface preparation
|
|
FINE-DUST CONTROL
MDF and coating sanding can produce fine dust. Connect the 150 mm sanding disc to a compatible extraction system. Inspect the vacuum filter and extraction hose during operation. |
|
Metal Surface Preparation Cleaning and light refinement
|
|
APPLICATION LIMIT
The aluminum oxide sanding disc is intended for surface preparation and light refinement. Not intended for:
|
|
Filler, Primer and Coating Sanding Repair and surface preparation
|
|
SANDING SEQUENCE
P120 can support filler leveling, repair-edge transition and surface preparation within a multi-step sanding process. Select the sanding sequence according to the filler, primer, paint or coating specification. |
P120 supports the transition from initial leveling to finer refinement.
Aozhong manufactures coated abrasive discs for B2B supply, distribution, industrial use and private-label programs. Quality control can cover the following production stages.
| Production Stage | Inspection Items | Control Focus |
|---|---|---|
|
Raw Material Control Incoming material verification
|
|
MATERIAL INPUT
Verifies abrasive grain, film, resin, attachment materials and incoming batch information before production. |
|
Coating and Curing Control Abrasive production records
|
|
PROCESS CONTROL
Records coating application, abrasive distribution, oven temperature, curing time and production-batch identity. |
|
Lamination and Disc Conversion Disc construction and punching
|
|
DISC CONVERSION
Checks lamination, disc dimensions, roundness, edge quality and the 49-hole layout against the approved specification. |
|
Finished-Product Inspection Product and performance checks
|
|
PRODUCT INSPECTION
Verifies product identity, dimensions, attachment, sanding behavior and compatibility with the specified extraction pad. |
|
Packaging Control Identification and shipment
|
|
PACKAGING OUTPUT
Checks product identification, packing quantity, shipment markings, export packaging and retained production samples. |
Answers about Aozhong manufacturing, 49-hole pattern control, sample evaluation, batch consistency and private-label packaging.
Yes. Aozhong manufactures coated abrasive discs for distributors, importers, industrial suppliers, automotive repair channels, woodworking suppliers and private-label programs. Production includes coating, curing, laminating, punching, converting, inspection, printing and packaging.
Hole count, hole diameter, center-hole position, pitch circle and punching position can be inspected against an approved drawing. Buyers can provide a 1:1 backing-pad drawing or physical pad sample for compatibility checking.
Yes. Samples can be supplied for cutting tests, scratch-pattern review, backing-pad fit checks, hole alignment, attachment testing and packaging approval. Production specifications are confirmed after sample evaluation.
Incoming materials, coating settings, curing conditions, lamination, disc dimensions, hole positions, attachment layers, grit markings, labels and packaging can be checked by production batch. Batch identification and retained samples can be included in the quality plan.
Yes. Options include backing print, labels, barcodes, inner boxes, pack quantities, export cartons and carton markings. Artwork, specifications, tolerances and inspection criteria are confirmed before production.
