In industrial sanding, many customers first focus on sandpaper grit size, abrasive material, and backing type—such as sandpaper, sanding discs, hook-and-loop sanding discs, PSA sanding discs, and mesh sanding discs—and how to select them.
However, in actual use, the sanding disc hole pattern also affects sanding efficiency.
If the hole pattern does not match the sander’s base plate, dust extraction performance will decrease, the sandpaper surface will clog more easily, and sanding dust will remain on the workpiece surface, thereby affecting the sanding disc’s lifespan and the quality of the surface finish.

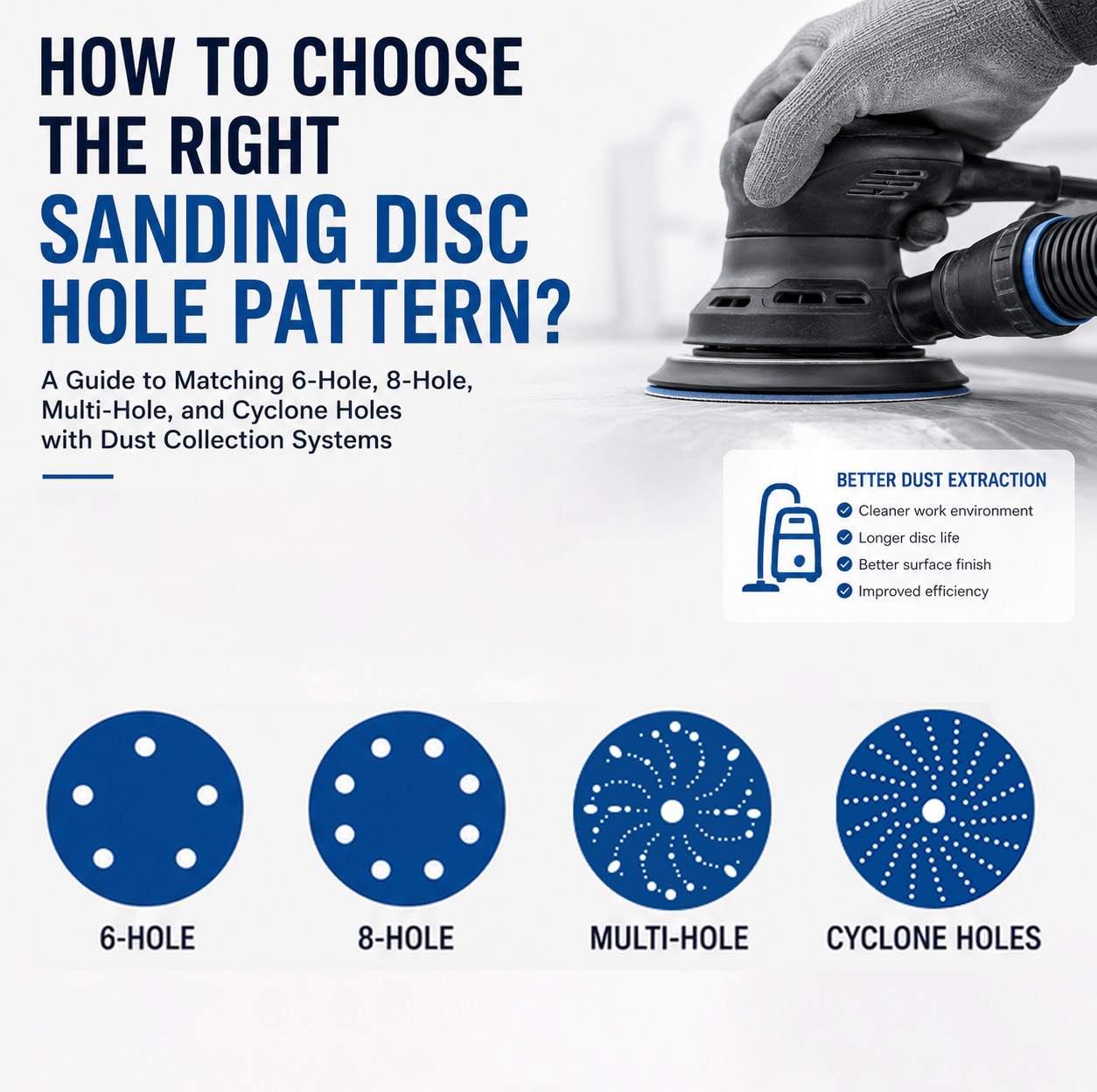

So, how should you choose between 6-hole, 8-hole, multi-hole, and cyclone-hole patterns? Which hole pattern should be paired with different dust collection systems? This article explains these considerations from an industrial application perspective.
The hole pattern on a sanding disc is not merely decorative; it is designed to work with the sander’s base and dust extraction system to remove sanding dust from the disc’s surface.
When sanding wood, automotive putty, primer, coatings, or metal oxide layers, dust accumulates on the surface of the sanding disc. If the dust cannot be removed, several problems may arise:
Therefore, when selecting an abrasive sanding disc, in addition to considering grit size and material, it is essential to verify that the hole pattern is compatible with the customer’s existing equipment.
6-hole sanding discs are one of the most common types and are typically used with certain pneumatic sanders and electric random-orbit sanders.
It features a simple design with concentrated holes, making it suitable for basic dust collection needs. For general woodworking sanding, primer sanding, and furniture surface finishing, the 6-hole sanding disc meets standard dust extraction requirements.
However, it has limitations. If the customer is sanding materials prone to clogging—such as putty, primer, softwood, or coated surfaces—the limited dust-extraction area of the 6-hole design may lead to dust buildup.
Recommended Applications:
Important Note:
If the customer’s equipment uses a 6-hole base plate, prioritize the use of a 6-hole sanding disc. If the holes on the sanding disc do not align with the base plate, dust extraction performance will be significantly reduced.
8-hole sanding discs are also commonly used in automotive refinishing, woodworking, and industrial surface preparation. Compared to 6-hole discs, 8-hole discs have a more dispersed dust-extraction area and provide greater dust-collection coverage.
For products such as automotive sanding discs, wood sanding discs, and paint sanding discs, the 8-hole design helps improve dust extraction efficiency and reduce clogging.
8-hole sanding discs are suitable for workshops with high usage frequency and strict dust control requirements. For example, scenarios such as automotive primer sanding, putty sanding, and pre-spray surface preparation for furniture can all benefit from the 8-hole design.
Applications:
Advantages:
Limitations:
The 8-hole design still features fixed hole positions. If the customer’s sander base has a different hole pattern, compatibility must be verified.
The key advantage of multi-hole sanding discs is their ability to cover a larger dust-removal area. Compared to traditional 6-hole or 8-hole discs, the multi-hole structure allows dust to be expelled from more locations, reducing dust buildup between the sandpaper and the workpiece.
For applications such as automotive refinishing, putty sanding, primer sanding, and coating preparation, multi-hole sanding discs are better suited for high-dust environments.
Many customers choose multi-hole sanding discs primarily to address issues such as clogging, dust residue, and sandpaper lifespan.
Applications:
Advantages:
Limitations:
Multi-hole sanding discs still have requirements for base plate compatibility. If customers are using specialized base plates, they need to confirm hole pattern compatibility.
Spiral-hole sanding discs typically feature a spiral or distributed hole pattern to increase the coverage of dust exhaust pathways. Their goal is to allow dust to exit the sanding area more quickly, thereby reducing clogging and heat buildup.
The spiral-hole design offers distinct advantages when sanding dust-prone materials such as putty, primer, old paint, coatings, and wood.
For customers seeking to improve dust extraction efficiency, the spiral hole sanding disc or cyclone hole sanding disc is a highly recommended option.
Applications:
Advantages:
Limitations:
Cyclone holes must be matched with a compatible base plate or universal dust collection base plate. If the base plate is incompatible, actual dust collection performance will be affected.
| Hole Pattern | Main Features | Suitable Applications | Advantages | Limitations |
|---|---|---|---|---|
| 6-Hole Sanding Disc | Basic hole pattern | General woodworking, basic sanding | Cost control, simple structure | Limited dust extraction area |
| 8-Hole Sanding Disc | Common industrial hole pattern | Automotive, furniture, primer sanding | Wide compatibility range | Must match the backing pad |
| Multi-Hole Sanding Disc | Larger dust extraction area | Putty, primer, coating sanding | Better anti-clogging performance | Hole compatibility needs confirmation |
| Swirl-Hole Sanding Disc | Distributed dust extraction path | High-dust continuous sanding | Wider dust extraction coverage | Requires matching backing pad |
In short:
When purchasing sanding discs, we recommend first confirming the following:
What size sander does the customer use?
Common sizes include 3-inch, 5-inch, and 6-inch, with 5-inch and 6-inch being more commonly used in the automotive and woodworking industries.
What is the hole pattern on the backing pad?
If the backing plate has 6 holes, choose a 6-hole sanding disc. If it has 8 holes, choose an 8-hole sanding disc. If the backing plate has multiple holes, you can choose multi-hole or mesh-type products.
Will a dust collector be connected?
For general sanding without a dust collection system, the hole pattern has relatively little impact. However, if a dust collection system is connected, matching the hole pattern is very important.
Is the material being sanded prone to clogging?
Putty, primer, cork, old paint, and coatings are more prone to clogging; we recommend choosing multi-hole, cyclone-hole, or mesh sanding discs.
Is the customer sanding by hand or using a machine?
For manual sanding, consider sanding sheets, sponge sanders, or scouring pads. For machine sanding, you need to confirm the disc size, hole pattern, and whether it has a fleece or adhesive backing.
Yes, they can be used, but dust extraction performance will be reduced. If the holes are not aligned with the base plate, dust cannot flow smoothly into the dust extraction channel, and the sandpaper is more likely to clog.
There is no definitive answer. 6-hole discs are suitable for basic sanding, while 8-hole discs provide broader dust extraction coverage. If the customer’s equipment uses an 8-hole base plate, 8-hole sanding discs should be preferred.
In high-dust environments, multi-hole sanding discs typically offer an advantage. However, if the customer’s equipment is incompatible, the benefits of the multi-hole design will be diminished.
They are suitable for automotive refinishing, woodworking, putty sanding, primer sanding, old paint removal, and customers who need to improve dust extraction efficiency.
Perforated sanding discs have holes punched into traditional sandpaper, relying on the holes to discharge dust. Mesh sanding discs feature an open mesh structure, allowing dust to be discharged across the entire surface, making them more suitable for materials prone to clogging.
Yes. Both hook and loop sanding discs and PSA sanding discs can be perforated according to equipment requirements, though hook and loop discs are more commonly used in automotive refinishing and woodworking applications.
We recommend providing the disc diameter, hole pattern diagram, photos of the backing plate, grit range, backing type, hook and loop or PSA requirements, packaging method, and application scenario.
